Installing Optical Contacts On Connector Side

Remove the dust boot right before plugging.

Check the proper condition of the contacts.

1. Insert the optical contact -A and B-  into the connector until it engages securely.
   1. Optical contact, grey
   2. Optical contact, black

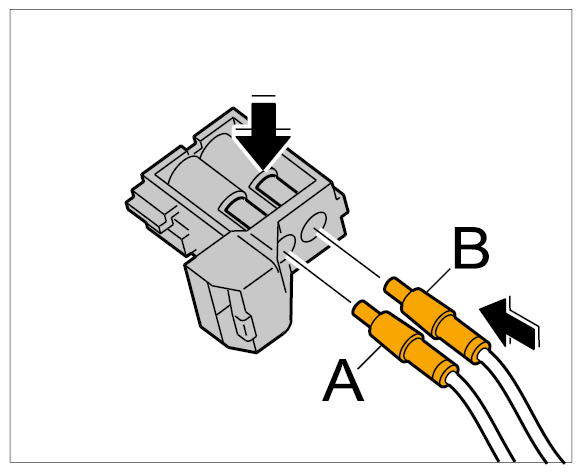

      Fig 1: Locking Primary Locking Mechanism Of Optical Contacts (Connector Side)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Lock the secondary locking and check the optical contacts for tightness.

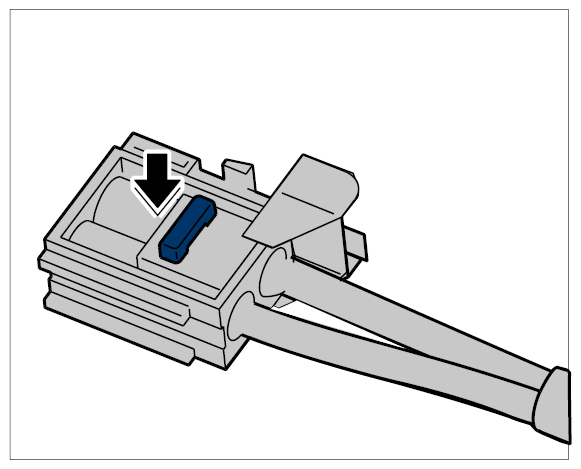

   Fig 2: Locking Secondary Locking Mechanism Of Optical Contacts (Connector Side)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
