Removing Wiring For Electrically Adjustable Seat

→ Switch off ignition and remove remote control before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche.
• The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed.
• Never touch the electric pins and plug contacts.

Information

The number of plug connections can vary, depending on equipment.

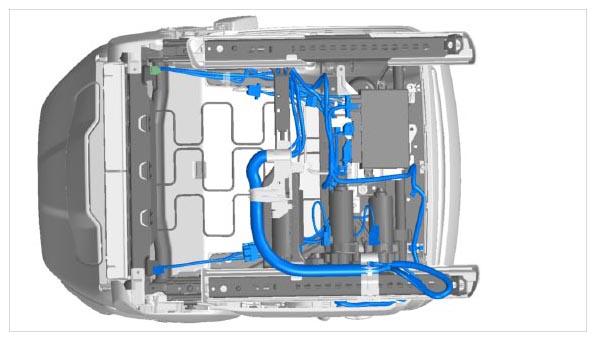

Fig 1: Identifying Seat Wire Harness Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

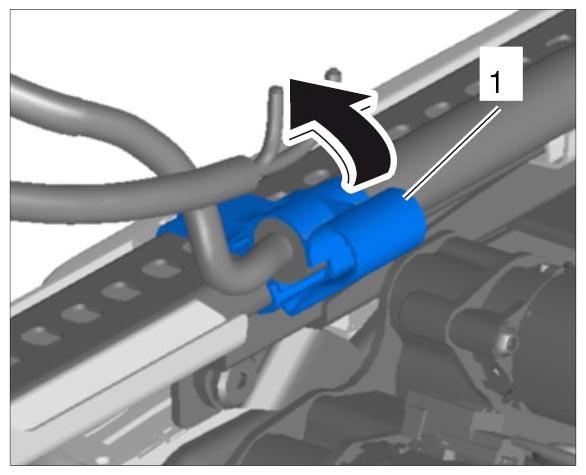

1. Unclip bracket at the seat frame -1-  .
   Fig 2: Unclipping Wire Harness Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

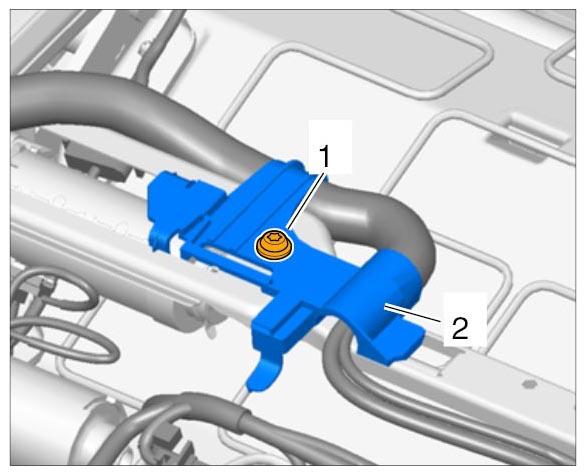

2. Unscrew fastening screw -1-  and unclip bracket -2-  .
   Fig 3: Removing Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

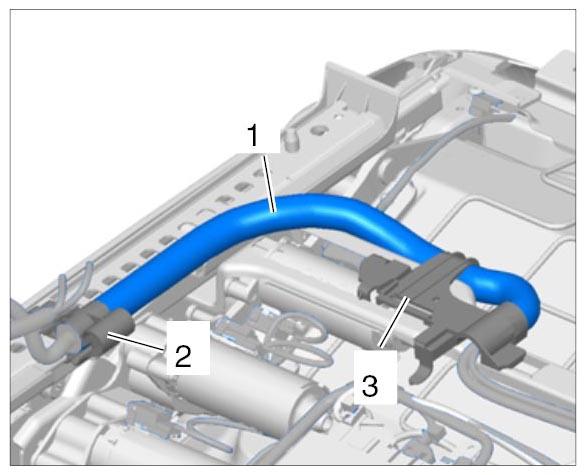

3. Take cable conduit -1-  out of the brackets -2 + 3-  .
   Fig 4: Removing Cable Conduit From Brackets

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

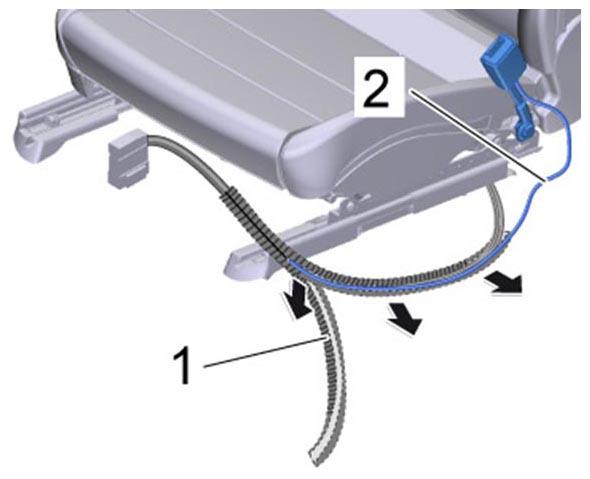

4. Remove the split cable conduit -1-  and expose the wire harness -2-  as far as the cable sheathing.
   Fig 5: Removing Wire Harness From Cable Conduit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

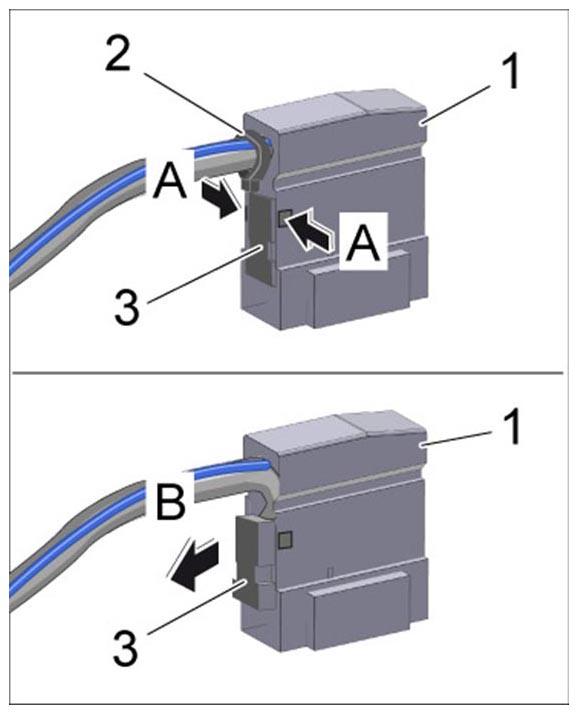

5. Remove tie-wrap -2-  on the connector socket -1-  .
6. Release single connectors -3-  (-A-  ) and remove them from the connector socket -1-  (-B-  ).
   Fig 6: Disconnecting Connector Socket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

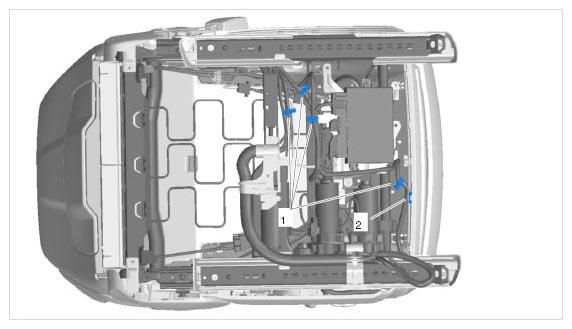

7. Remove all relevant tie-wraps -1-  and clips -2-  .
   Fig 7: Identifying Seat Wire Harness Fastening Points

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

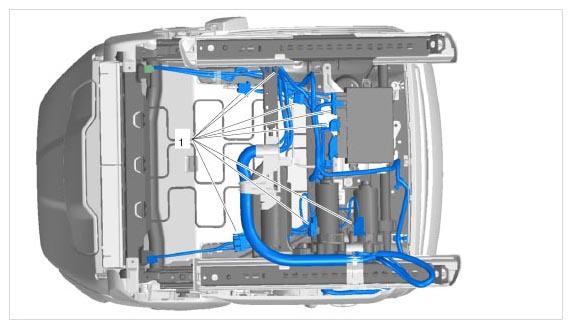

8. Release and unplug electric plug connections -1-  .
   Fig 8: Identifying Seat Wire Harness Plug Connections

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
