Removing Rear TPM Transmitter

  1. Release connector for TPM transmitter -arrow a-  and pull it off -arrow-  .

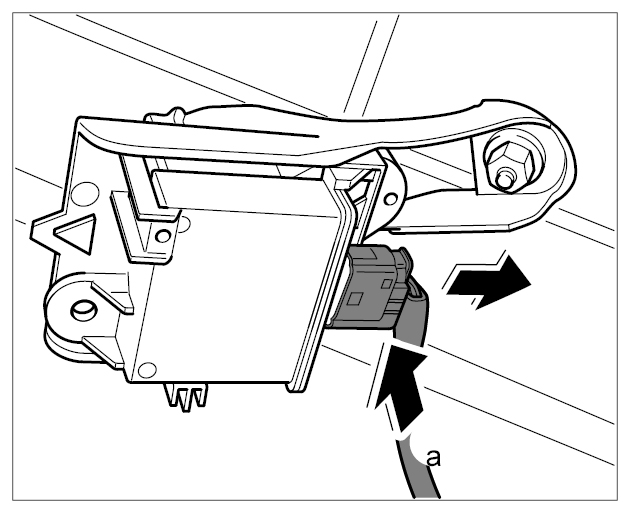

    Fig 1: Identifying Rear TPM Transmitter And Connector
    G09807886Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip TPM transmitter from holder -arrows-  and remove it.

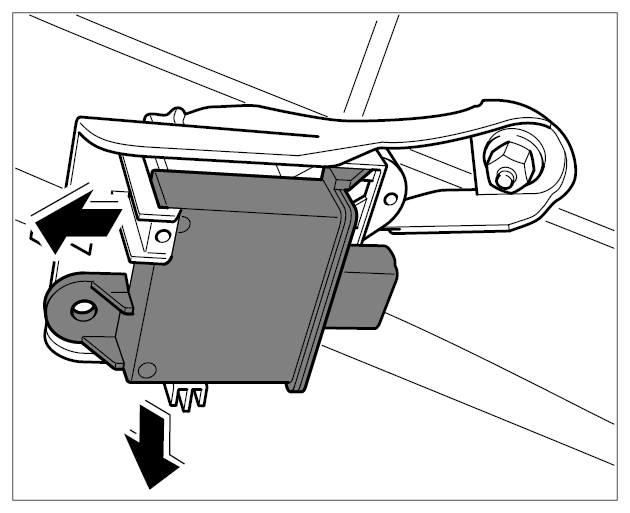

    Fig 2: Removing Rear TPM Transmitter
    G09807887Courtesy of PORSCHE CARS NORTH AMERICA, INC.
