Removing Rear Panel

  1. Release locking lugs on the rear panel in the sequence -A-  , -B-  and -C-  .

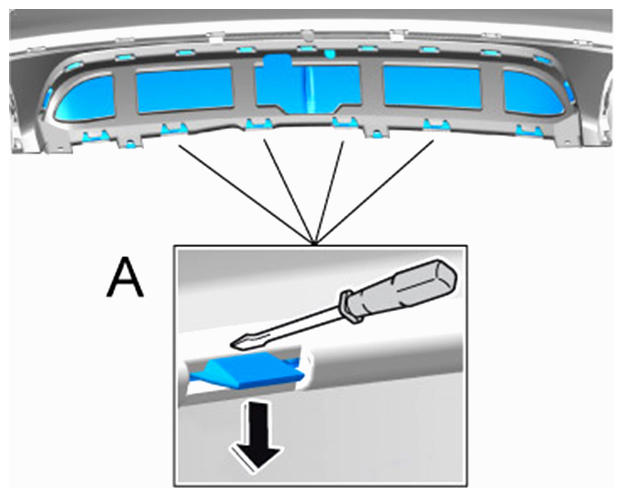

    Fig 1: Removing Rear Panel
    G09810870Courtesy of PORSCHE CARS NORTH AMERICA, INC.

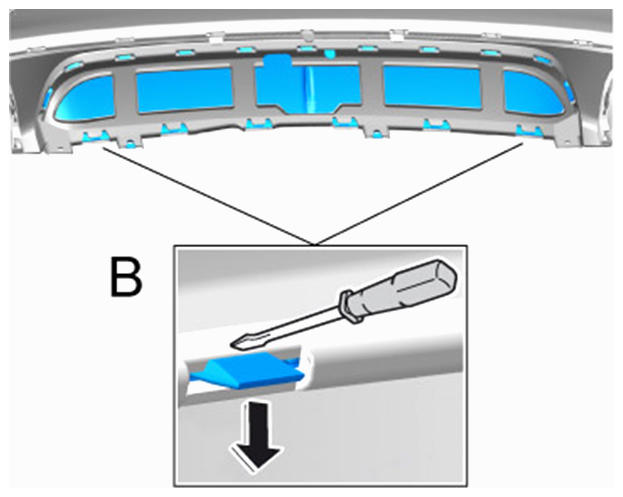

    Fig 2: Removing Rear Panel
    G09810871Courtesy of PORSCHE CARS NORTH AMERICA, INC.

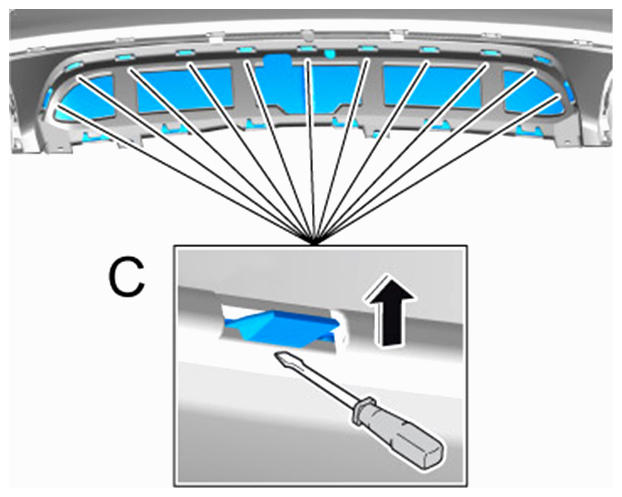

    Fig 3: Removing Rear Panel
    G09810872Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove rear panel.
