Removing Front Bumper

  1. Fold open air guides -6-  .

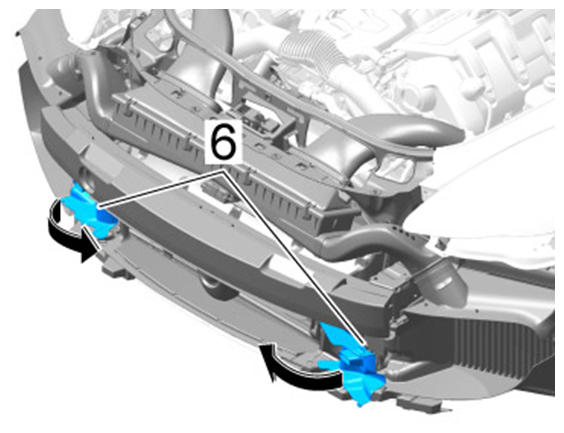

    Fig 1: Folding Open Air Guides
    G09810821Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -3-  .
  3. Unscrew fastening screws -2-  .
  4. Remove horn with holder -4-  .

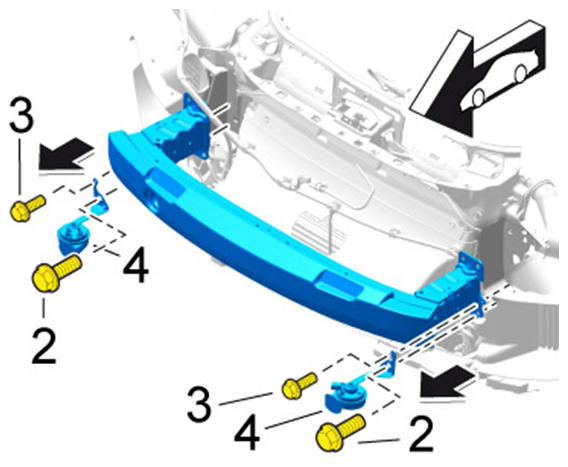

    Fig 2: Unscrewing Fastening Screws
    G09810822Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Unscrew fastening screws -2-  .

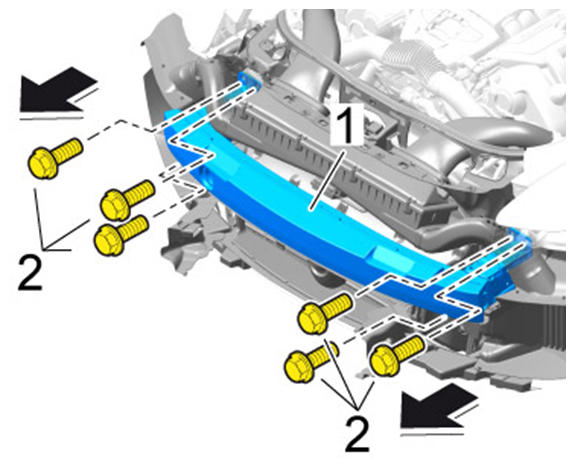

    Fig 3: Removing Bumper Mounting
    G09810823Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove bumper -1-  .
