Removing Suction Fan For Backrest Surface

Cut tie-wrap -1- using side cutters and remove insulation -2- around the plug connection for the suction fan.

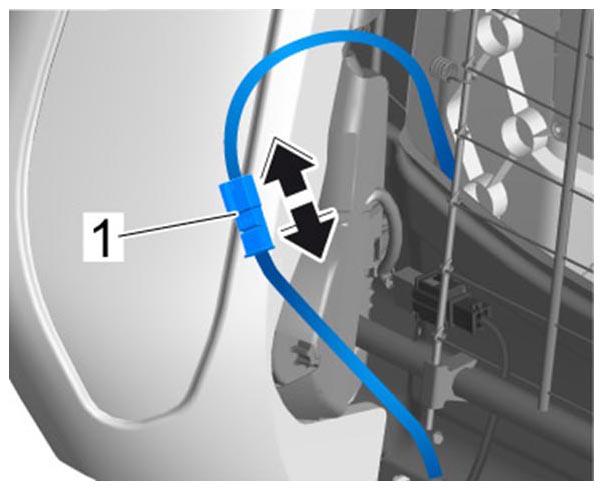

Fig 1: Cutting Tie-Wrap And Exposing Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unplug plug connection for suction fan -1- (-arrow- ).

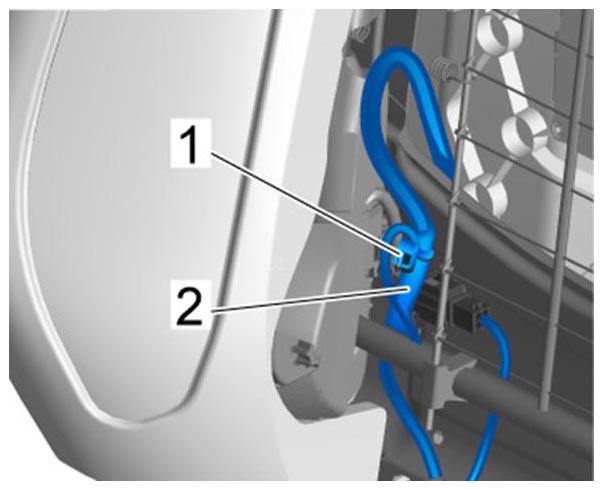

Fig 2: Removing Suction Fan Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the three fastening screws -1, 2, 3- , guide the suction fan -4- upwards -arrow- and remove it.

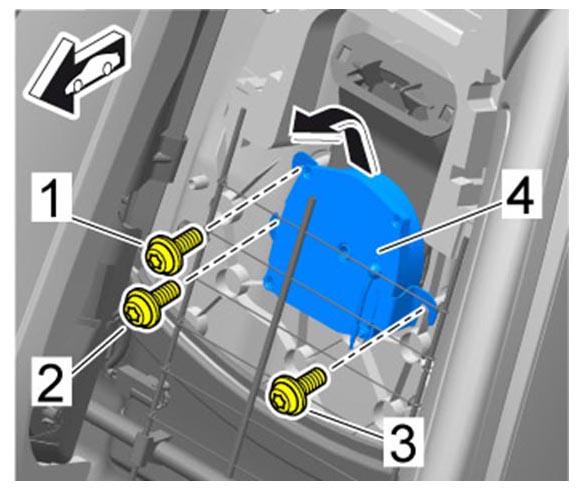

Fig 3: Removing Suction Fan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
