Removing Selector Knob

  1. Twist locking mechanism at bottom of selector knob by 45 degrees in direction of arrow and pull selector knob up and off.

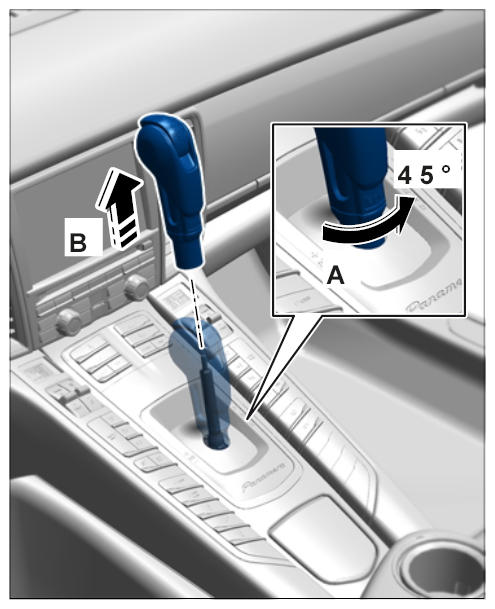

    Fig 1: Removing Selector Knob
    G09806785Courtesy of PORSCHE CARS NORTH AMERICA, INC.
