Removing Front Three-Point Belt

WARNING: Incorrect handling of seat-belt pretensioner unit
  • Triggering of seat-belt pretensioner unit

→ Observe safety regulations for handling seat-belt pretensioner units. → 6X00IN HANDLING AND REPLACING AIRBAG AND SEAT-BELT PRETENSIONER UNITS

→ Observe disposal regulations for seat-belt pretensioner units. → 6X00IN DISPOSAL OF AIRBAG AND SEAT-BELT PRETENSIONER UNITS

→ After disconnecting the battery, wait 1 minute before disconnecting the seat-belt pretensioner unit.

→ Remove ignition key and disconnect the battery. Route or insulate the ground strap so that all contact with a ground carrier is avoided. → 2X00IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY

→ If removed for an extended period, the seat-belt pretensioner unit must be stored in a safe place.

→ Transport the seat-belt pretensioner unit in such a way that the seat belt can retract safely if it is actuated.

  1. Unlock retaining clip on the seat belt mount using a suitable screwdriver -arrow A-  .
    Fig 1: Removing Seat Belt Mount
    G09811837Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push the seat belt mount over the retaining pin -arrow B-  until the locking lug under the retaining pin loosens the clip.

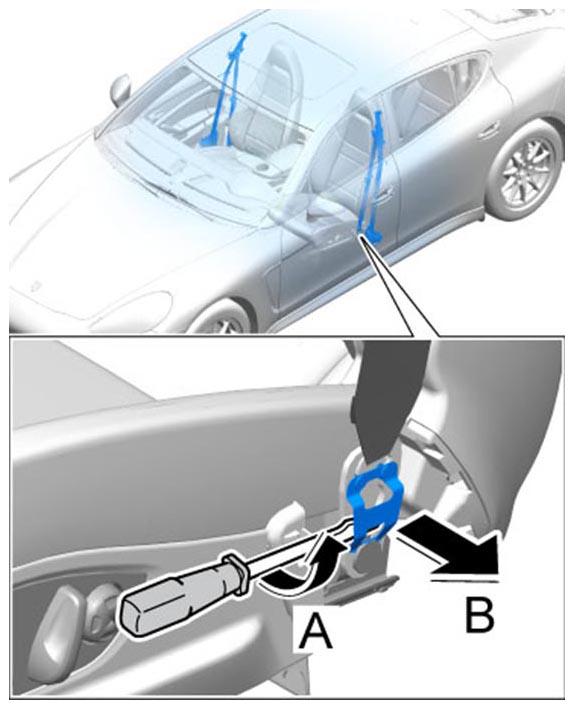

    Fig 2: Removing Seat Belt Mount
    G09811838Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove seat belt mount from the retaining pin -arrow A-  and pull out the seat belt -arrow B-  .

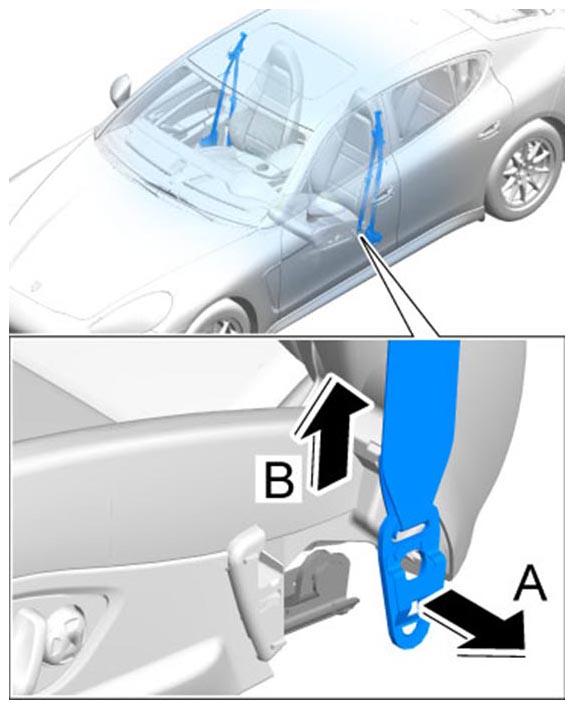

    Fig 3: Removing Seat Belt Mount
    G09811839Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew fastening screw -1-  on the top belt lug and remove it -arrow A-  .

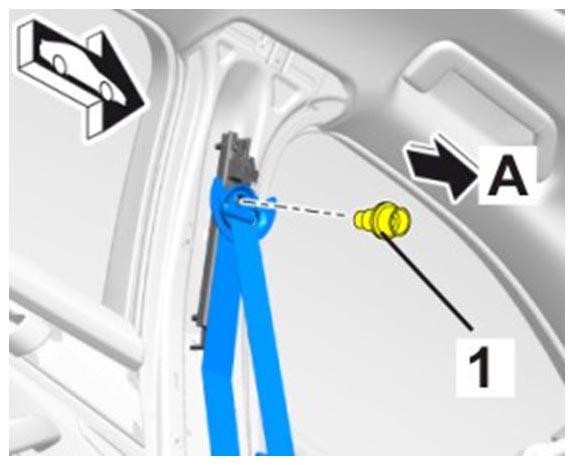

    Fig 4: Detaching Belt At Adjustment Fitting
    G09811840Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove seat belt.
    1. 5.1. Turn the top belt lug and push it downwards behind the retaining bar. Turn the top belt lug and push it downwards behind the retaining bar.
    2. 5.2. Pull out seat-belt buckle with seat belt mount in a downward direction. Pull out seat-belt buckle with seat belt mount downwards, behind the retaining bar.
  6. Release locking mechanism on electric plug connection -arrow a-  and disconnect electric push-on connector -1-  (-arrow A-  ).

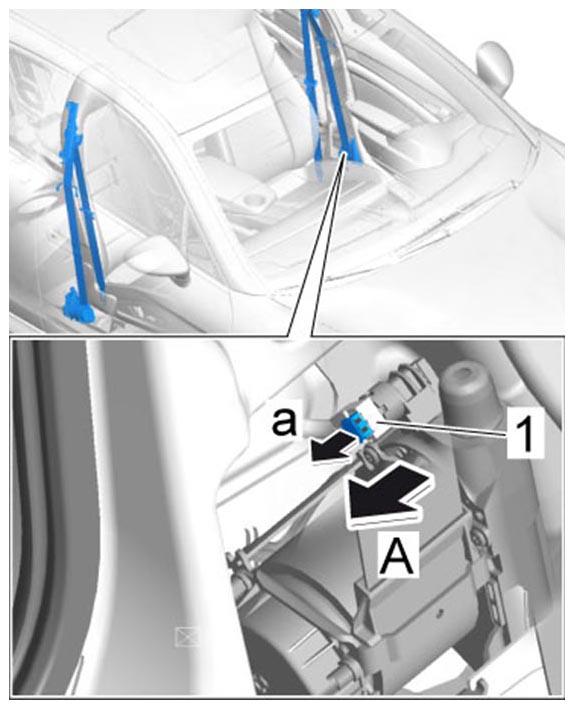

    Fig 5: Pulling Out Seat-Belt Pretensioner
    G09811841Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Unscrew fastening screw -1-  on the belt roller and remove it -arrow A-  .

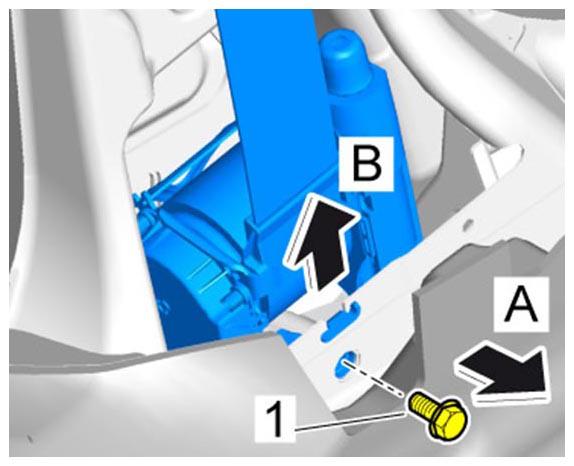

    Fig 6: Removing Belt Roller
    G09811842Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Remove belt roller in an upward direction -arrow B-  .
