85 - Ventilation -- PANAMERA (970)
>>
WM 856019 Air Vent At B-Pillar (Except PANAMERA S Executive, PANAMERA Executive, PANAMERA 4 S Executive, PANAMERA Turbo Executive, PANAMERA GTS, PANAMERA 4S Sport Edition, PANAMERA 4 Executive)
>>
Removing Air Vent At B-Pillar
Removing Air Vent At B-Pillar

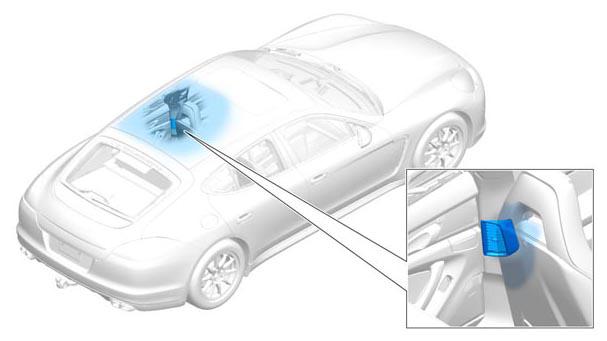

Fig 1: Identifying Installation Position Of Air Vent At B-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip air vent
-A-
and remove it
-B-
.

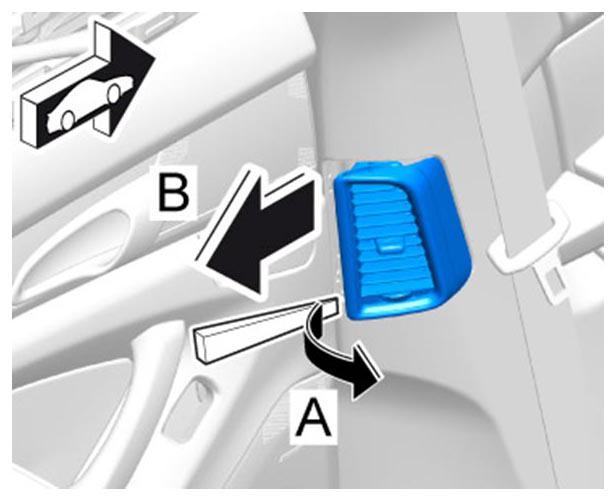

Fig 2: Unclipping Air Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect plug connection.

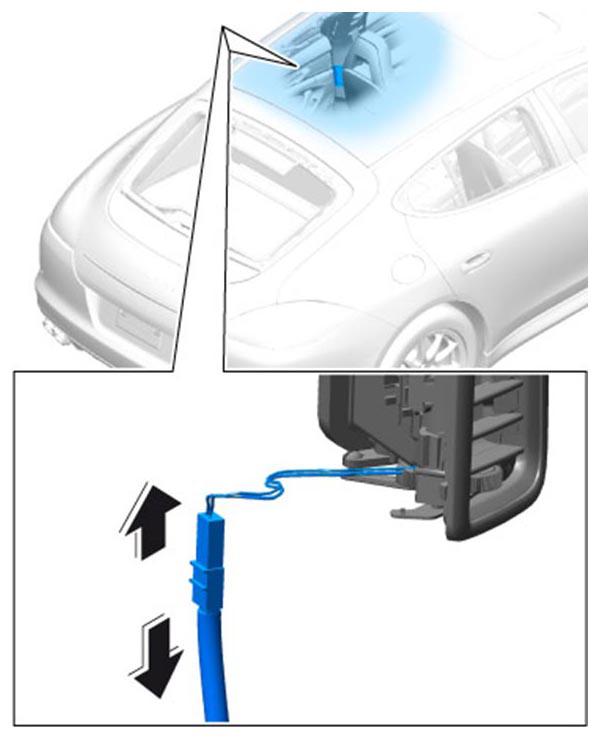

Fig 3: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
