Installing Air Vent At B-Pillar

  1. Connect plug connection.

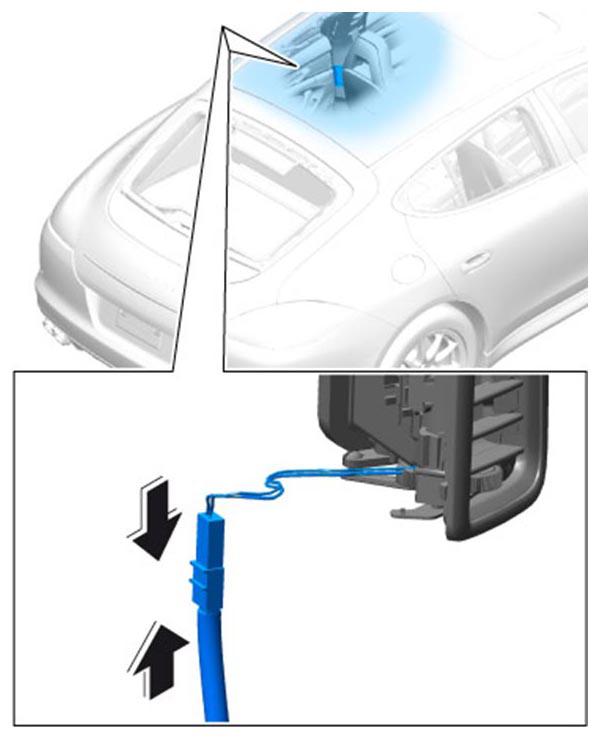

    Fig 1: Connecting Plug Connection
    G09813294Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check that the plug connection is seated securely.
  3. Fit air vent at the ventilation duct and clip it in.

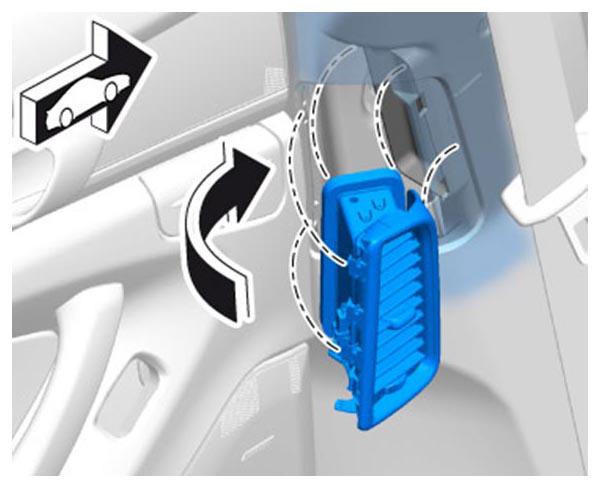

    Fig 2: Installing Air Vent
    G09813295Courtesy of PORSCHE CARS NORTH AMERICA, INC.
