Installing High-Pressure Pump

→ Ventilate the work area well.

→ Never ingest or inhale.

→ Read specific information on the Hazard Sheet.

→ Do not smoke, eat or drink in the work area.

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapours.

→ Attach warning sign in a clearly visible position.

→ Thoroughly clean connection points and adjacent areas before loosening them. If the engine is very dirty, wash it before starting disassembly work.

→ Lay removed parts on a clean surface and cover them. Do not use fibre-shedding cloths.

→ Carefully cover components or seal them if repair work will not be carried out immediately. Place rubber caps on connections. Seal intake openings with film or adhesive tape.

→ Only install clean parts. Do not take spare parts out of the packaging until just before installation.

→ Never use compressed air when the system is open. Do not move the vehicle.

→ Perform leak test.

Information

For tightening torques, tightening sequence and assembly overview, see → 2X00IN TECHNICAL VALUES

1. Install roller tappet.
   1. 1.1. Check roller tappet -1-  for damage and replace if necessary.

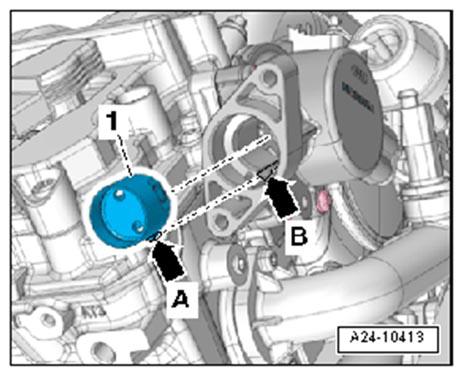

   2. 1.2. Coat roller tappet with oil and fit by inserting the lug -arrow A-  into the guide -arrow B-  .
      Fig 1: Locating Roller Tappet For High-Pressure Pump

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Insert guide pin of adapter T40058  as follows:
   1. 2.1. The large diameter -arrow 1-  is facing the engine.
   2. 2.2. The small diameter -arrow 2-  is facing the adapter.
      Fig 2: Locating Adapter (T40058)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

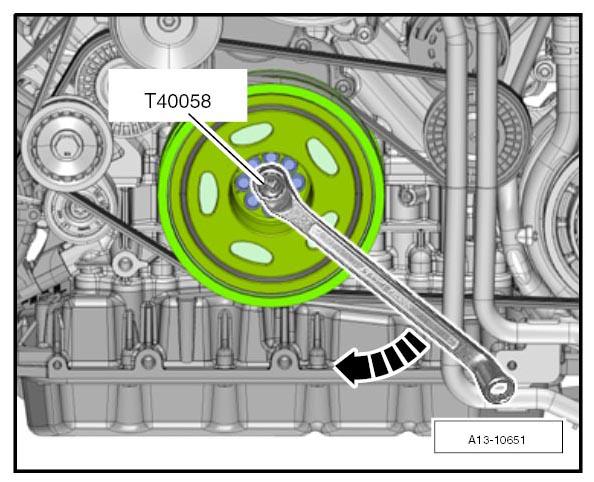

3. Use adapter -T40058-  and cranked ring spanner to turn the crankshaft in direction of rotation of engine (-arrow-)  . To do this, press roller tappet into the housing until it has reached the lowest point.
   Fig 3: Turning Crankshaft

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Lift high-pressure line up slightly in order to insert the high-pressure pump.
5. Replace O-ring and install high-pressure pump.
6. Further assembly is carried out in reverse order.
