Preparing Seat Cross Member For Installation

Fit and secure the seat cross member.

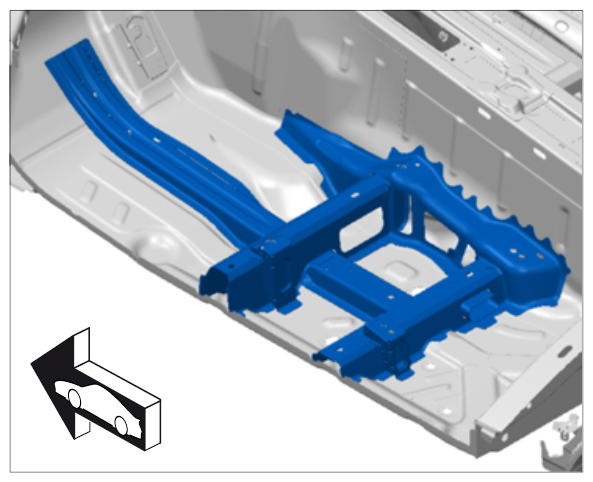

Fig 1: Fitting Seat Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

More rivets are set during installation than in the original setup.

To prevent the edges of the rivets from touching at a later stage, make sure to leave sufficient and equal space between the bores.
Drill 38 new holes for rivets using a 6.6-mm drill bit twist drill Nr.201 .

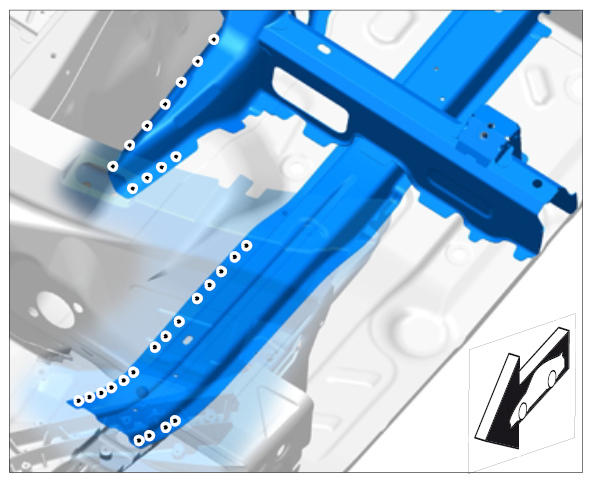

Fig 2: Drilling Rivet Holes On Seat Cross Member (1 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

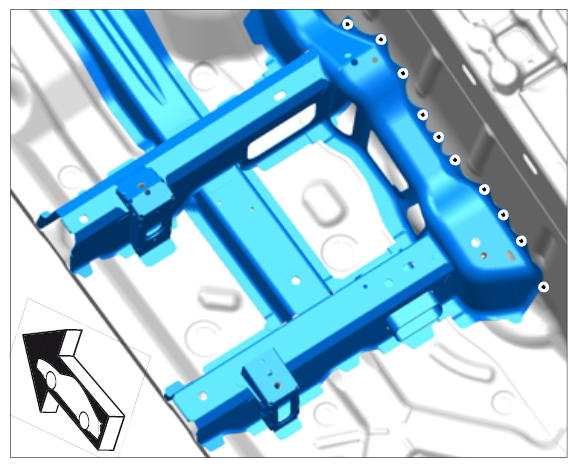

Fig 3: Drilling Rivet Holes On Seat Cross Member (2 Of 2)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove seat cross member.
Prepare connection areas for bonding.

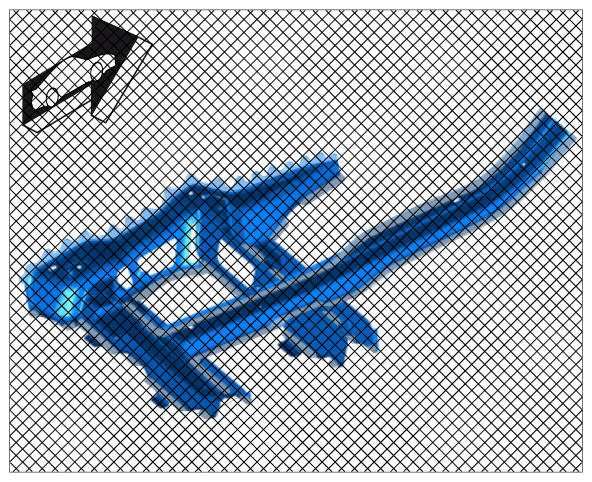

Fig 4: Preparing Connection Areas Of Seat Cross Member For Bonding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
