Removing Front Side-Section Trim Panel

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

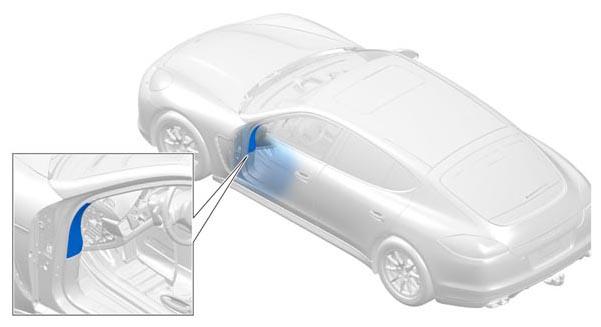

Fig 1: Identifying Front Side-Section Trim Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unclip side-section trim panel from top of A-pillar trim panel.

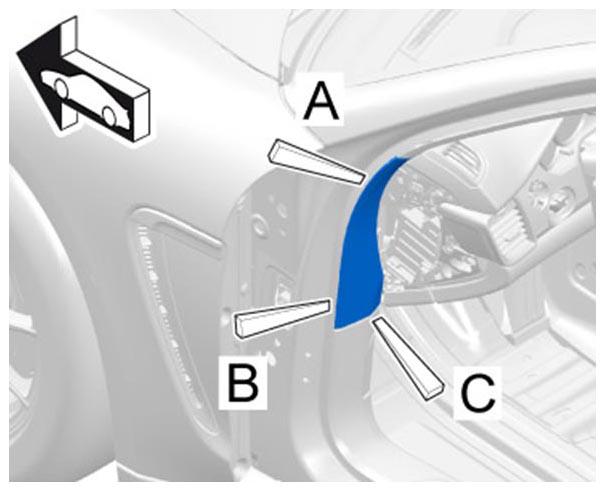

   Fig 2: Unclipping Side-Section Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unclip side-section trim panel at the lower edge.
3. Remove trim panel in a downward direction.

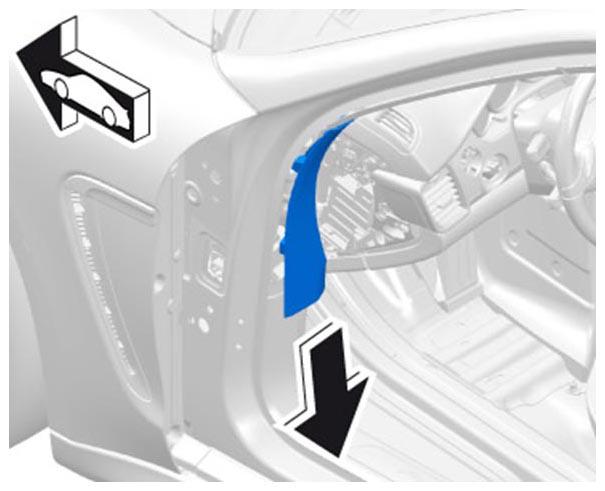

   Fig 3: Detaching Side-Section Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
