Removing Centre Console

Information

The number of plug connections can vary, depending on equipment.

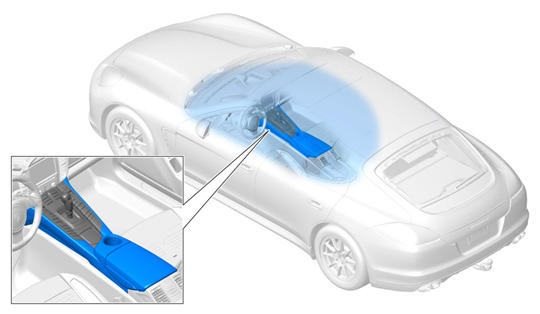

Fig 1: Identifying Centre Console Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

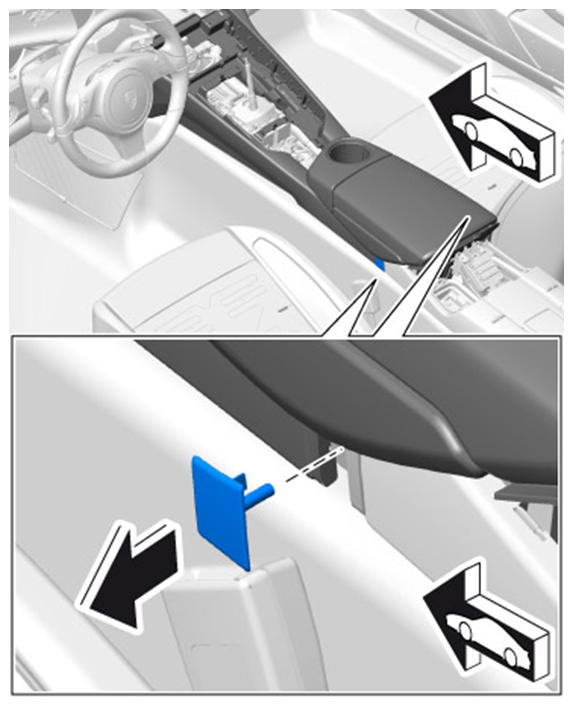

1. Unclip cover at the sides.
   Fig 2: Removing Sides Cover Clip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

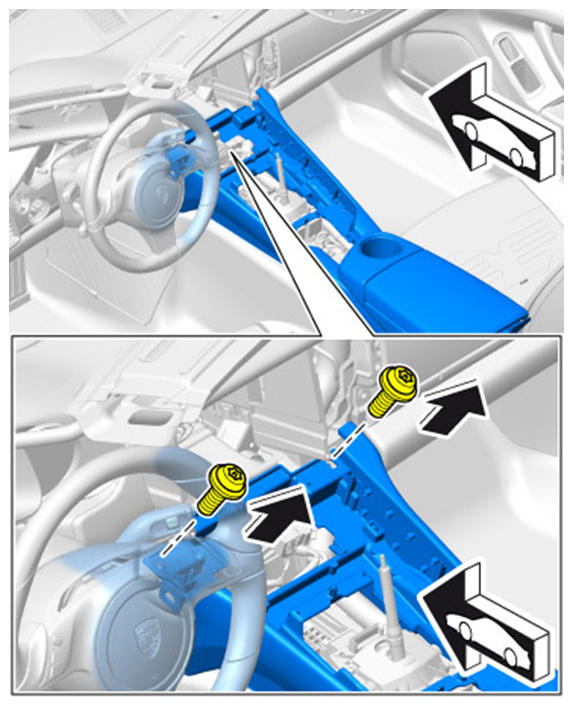

2. Unscrew fastening screws at the top.
   Fig 3: Releasing Centre Console Mounting At Top

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

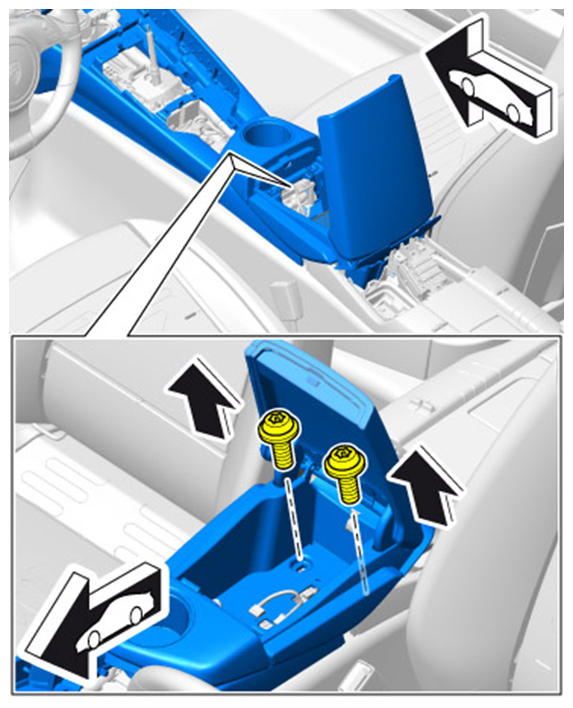

3. Unscrew fastening screws in package box.
   Fig 4: Releasing Mounting In Package Box

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

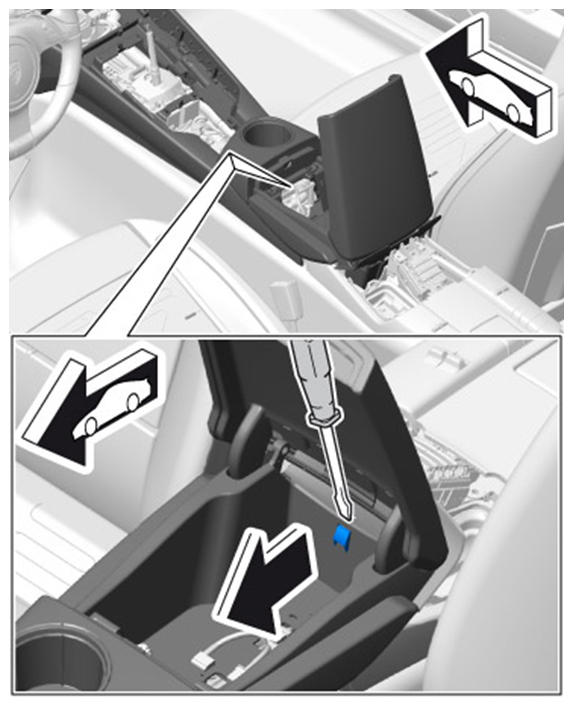

4. Unclip light.
   Fig 5: Removing Light Clip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

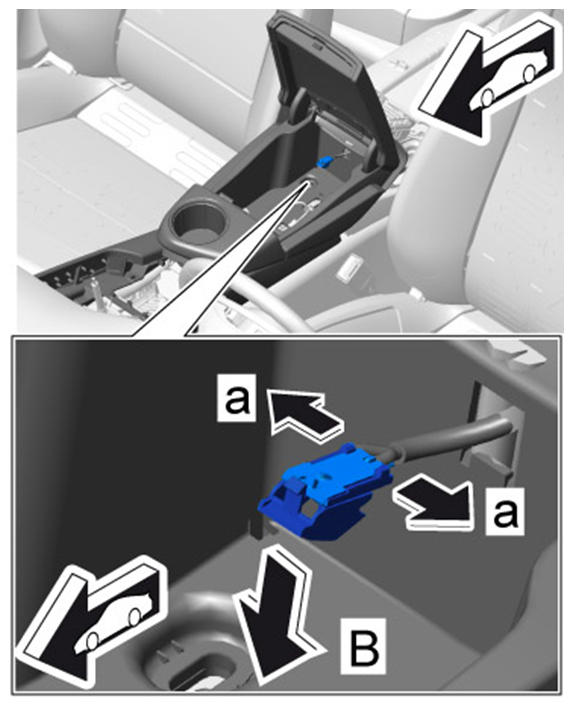

5. Unclip light from the bracket -a-  and guide out of holder -B-  .
   Fig 6: Removing Light From Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Guide light outwards through the opening in the package box.

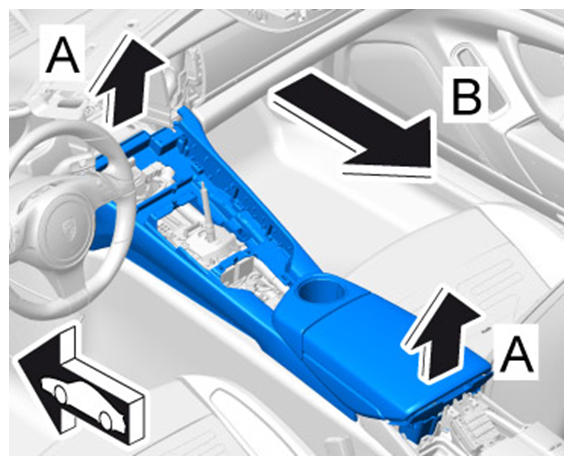

7. Lift up center console -A-  and pull it to the rear -B-  . Then disconnect plug connection.
   Fig 7: Lifting Centre Console

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
