Installing Centre Console

Information

The number of plug connections can vary, depending on equipment.

1. Guide light through the opening in the package box.

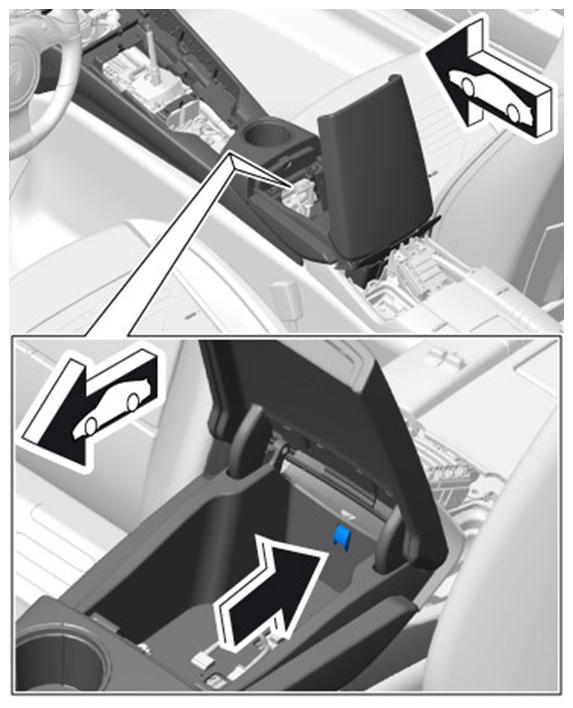

   Fig 1: Guiding Light Into Package Box

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Position center console in installation position and plug in plug connections.

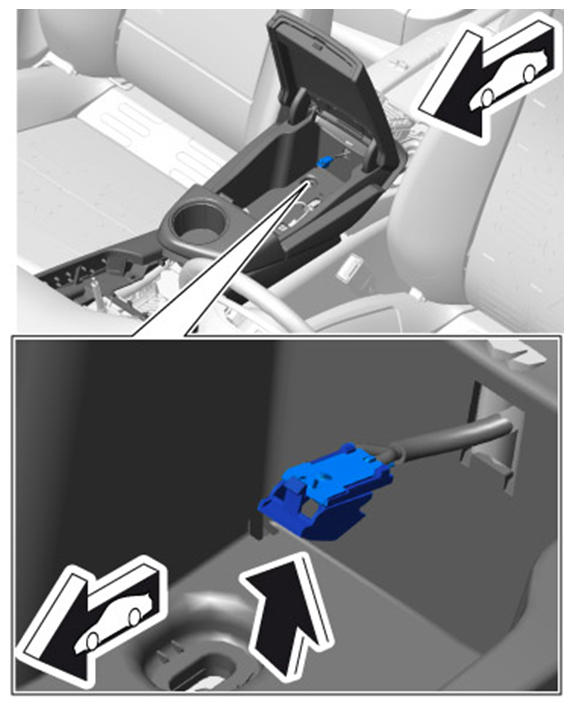

   Fig 2: Installing Centre Console

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Clip light into the bracket.
   Fig 3: Installing Light Clip Into Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Clip light into the opening in the package box.

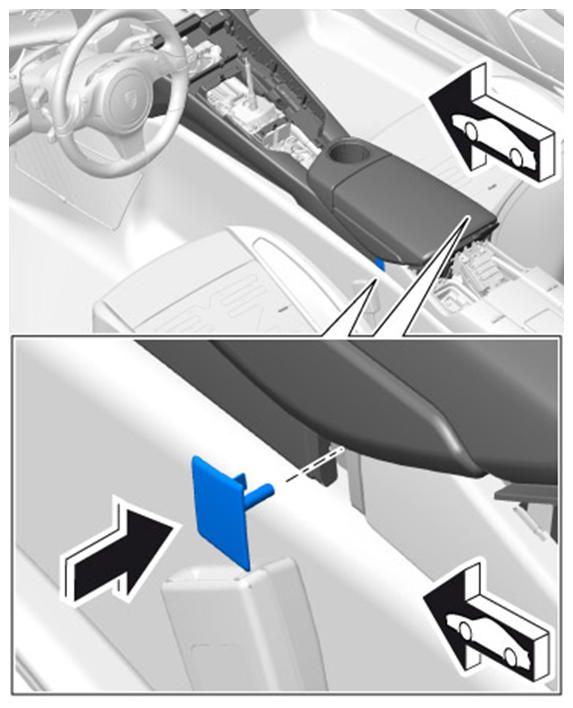

   Fig 4: Installing Light Clip Into Package Box

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Clip in fixing clips.
   Fig 5: Installing Fixing Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Tighten upper fastening screws to the specified tightening torque Tightening torque 3.2 Nm (2 ftlb.) +/-0.5 Nm (+/-0.5 ftlb.)  until secure.

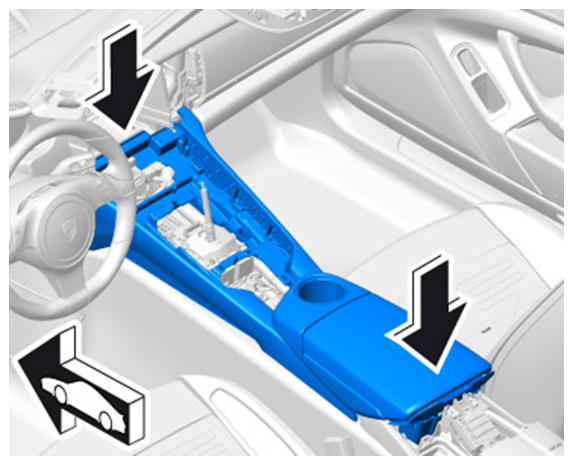

   Fig 6: Securing Centre Console At Top

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Tighten fastening screws in package box to the specified tightening torque Tightening torque 3.2 Nm (2 ftlb.) +/-0.5 Nm (+/- 0.5 ftlb.)  until secure.

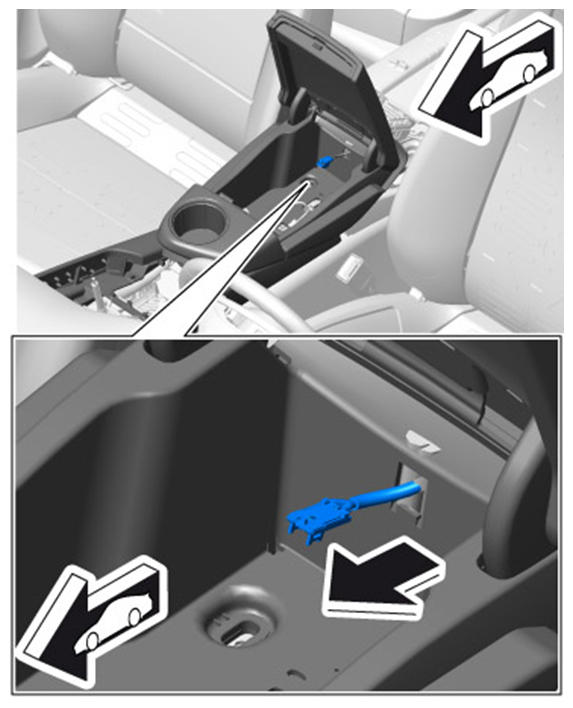

   Fig 7: Securing Centre Console
