Removing Rain Sensor

  1. Switch off ignition and remove remote control.
  2. Carefully lever apart the cover on the mirror base with a plastic spatula and remove it.

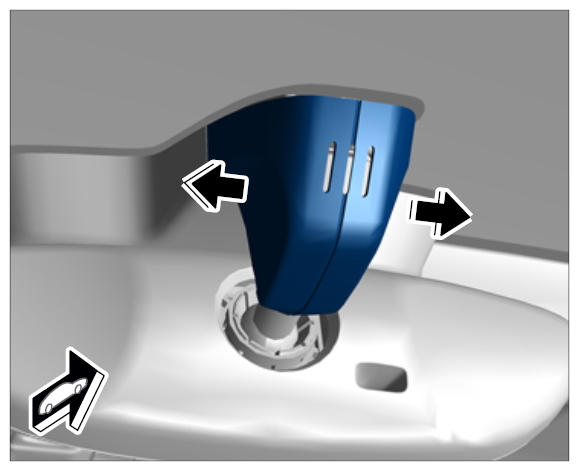

    Fig 1: Loosening Cover
    G09814661Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unclip mirror base from the mirror support.

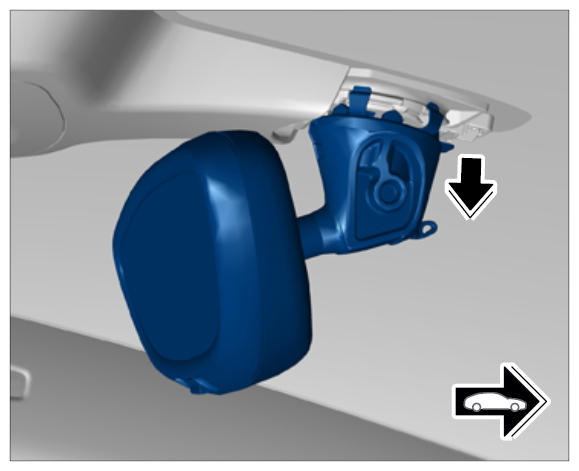

    Fig 2: Removing Mirror Clip
    G09814662Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Using a plastic spatula, carefully lever the rain sensor -1-  out of the adhesive plate -2-  .

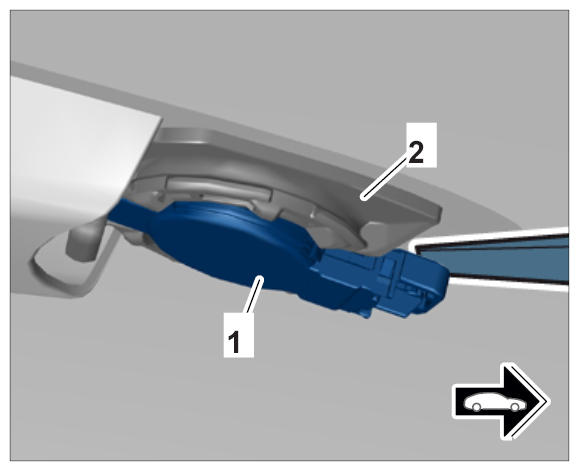

    Fig 3: Removing Rain Sensor
    G09814663Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Disconnect electric plug connection -1-  .

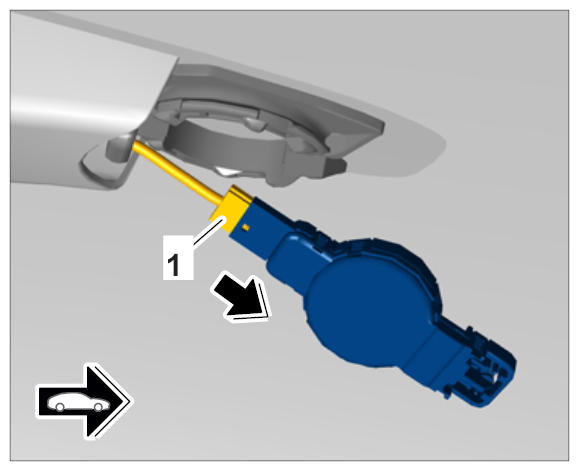

    Fig 4: Disconnecting Electric Plug Connection
    G09814664Courtesy of PORSCHE CARS NORTH AMERICA, INC.
