Removing Fuel Line (High-Pressure)

→ Allow the fuel to cool down before opening line connections.

→ Wear protective gloves.

→ Wear protective goggles.

Information

Always read the rules relating to cleanliness and instructions for working on the fuel system.

These instructions must always be observed before and while working on the fuel system.

Information

Close off open connections and lines using suitable stoppers or caps.

1. Unscrew fastening screws -2-  for the high-pressure lines -1, 4 and 5-  .
2. Loosen union nuts on high-pressure line -1-  .
   1. 2.1. Remove high-pressure line -1-  .
3. Loosen union nuts on high-pressure line -4-  .
   1. 3.1. Remove high-pressure line -4-  .
4. Loosen union nuts on high-pressure line -5-  .
   1. 4.1. Remove high-pressure line -5-  .
5. Place high-pressure lines -1, 4 and 5-  on a clean surface.

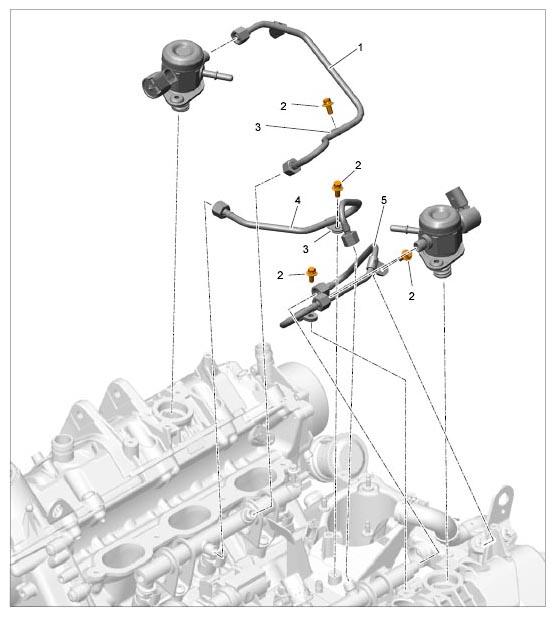

   Fig 1: Identifying High-Pressure Pump And Lines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
