Installing DME Control Unit

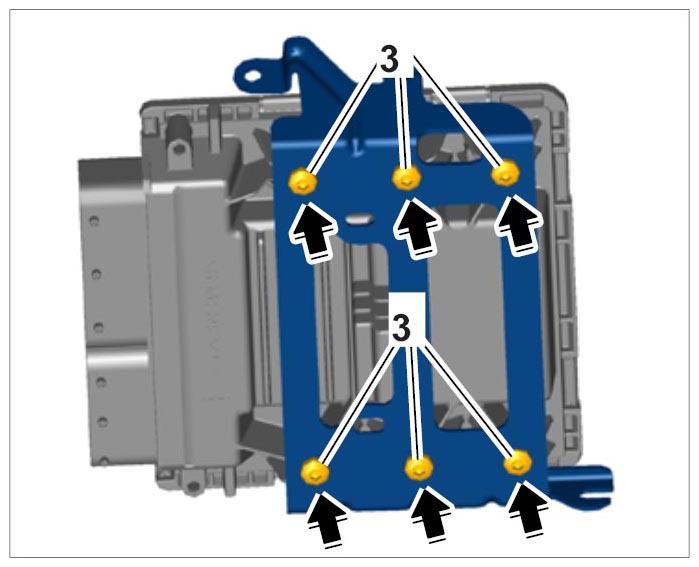

- Position the holder on the DME control unit and secure it with the fastening screws -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

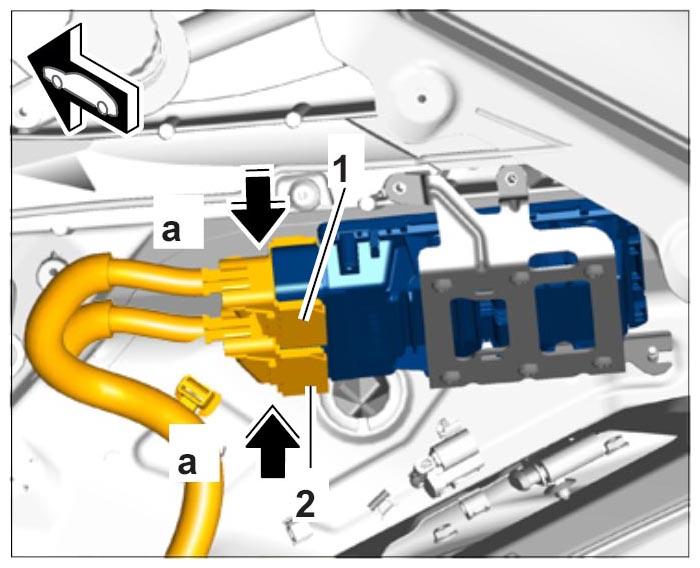

- Connect both connectors -1, 2-
on the DME control unit and close the latch -a-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Secure DME control unit and holder.

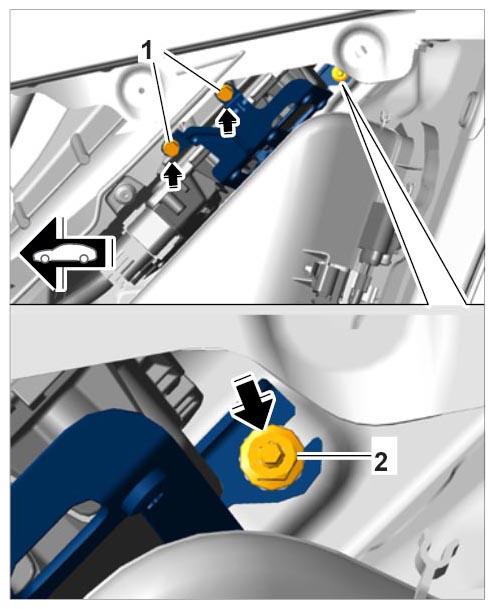

- 3.1. Position DME control unit and holder and secure with the fastening nut -2-
and the two fastening screws -1-
. → Tightening torque: 9.7 Nm (7.5 ftlb.) → Tightening torque: 9.7 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
