Removing DME Control Unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

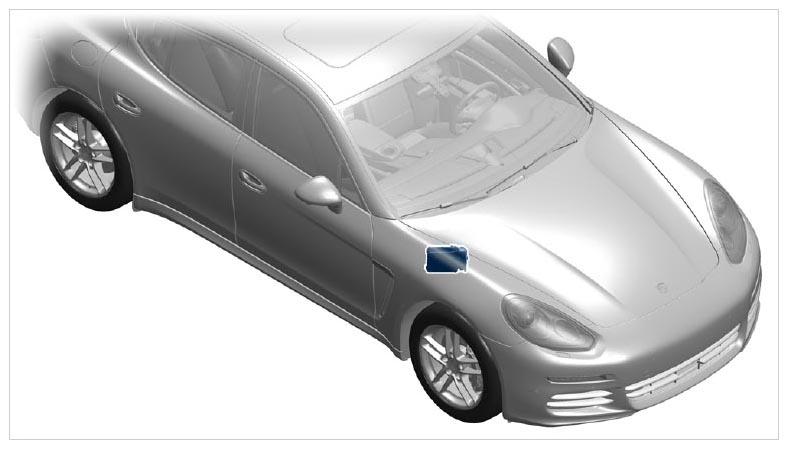

Fig 1: Identifying DME Control Unit Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew and remove the two fastening screws -1-  .
2. Loosen the fastening nut -2-  .

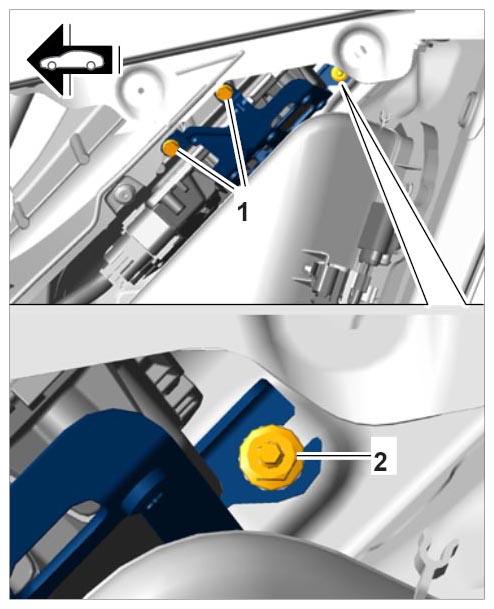

   Fig 2: Removing Control Unit Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Pull the holder forward in direction of travel and lift it up and out.
4. Release the latch on both connectors -1, 2-  (-a-  ) and remove the two connectors from the DME control unit.

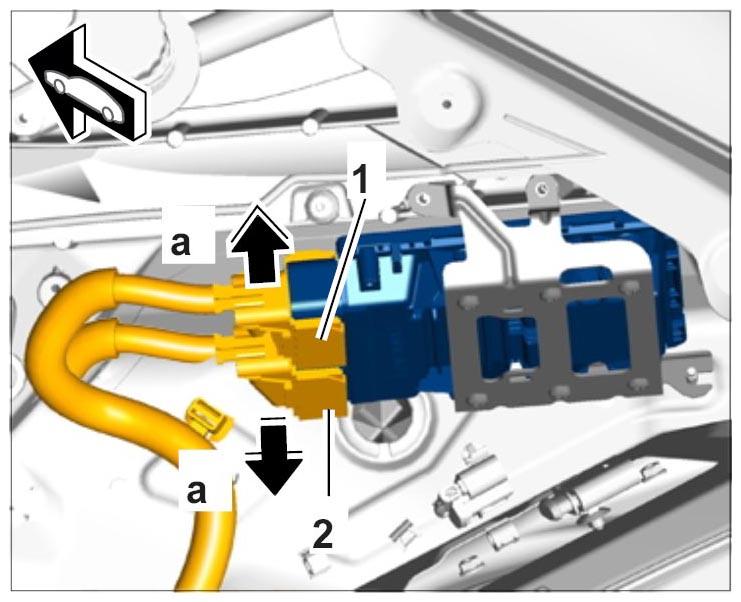

   Fig 3: Releasing Connectors

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Unscrew and remove the six fastening screws -3-  on the holder and remove the holder from the DME control unit.

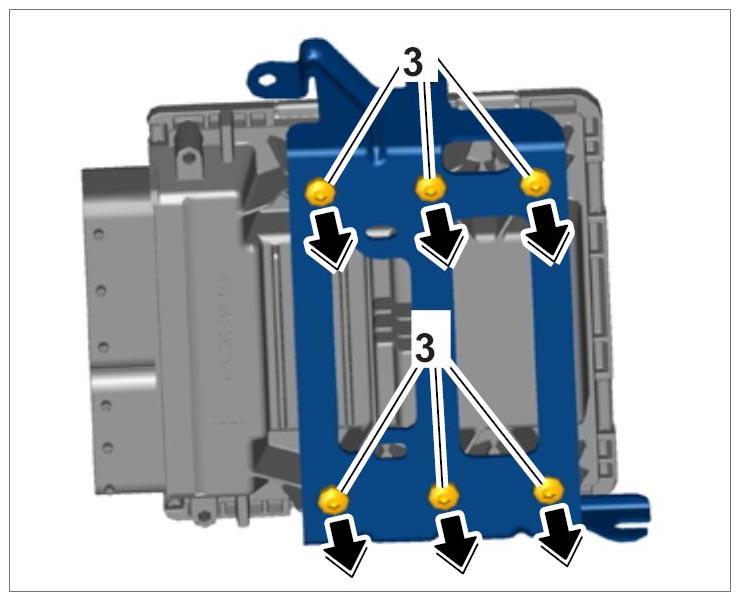

   Fig 4: Removing Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
