Component Overview

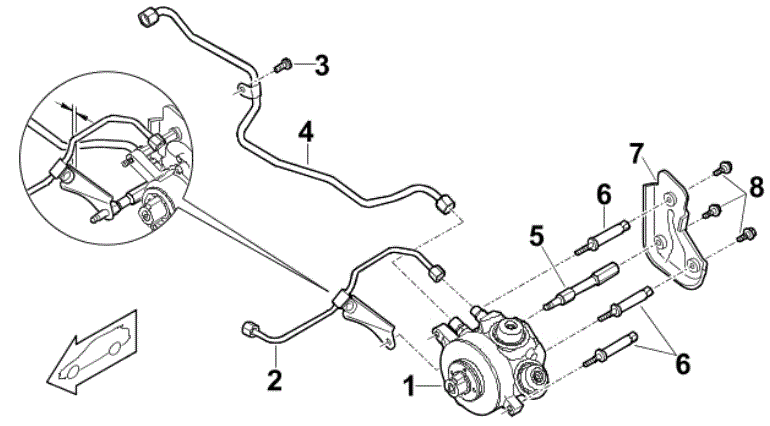

Fig 1: High-Pressure Pump, Turbo Engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. High-Pressure Pump
2. High-Pressure Line; (3 turns: tighten, loosen, tighten)
3. M6 screw on low pressure line
4. Low-pressure line; (3 turns: tighten, loosen, tighten); counter at the hexagon at the high-pressure pump
5. Screw socket, M8
6. Screw socket, M6
7. Protective plate
8. Screw, M6 x 20

Lupe  Required line distance (5 to 8 mm) between components

Fig 2: High-Pressure Pump, Naturally Aspirated Engine

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. High-Pressure Pump
2. High-Pressure Line; (3 turns: tighten, loosen, tighten)
3. M6 screw on low pressure line
4. Low-pressure line; (3 turns: tighten, loosen, tighten); counter at the hexagon at the high-pressure pump
5. Screw socket, M8
6. Screw socket, M6
7. Protective plate
8. Screw, M6 x 20

Lupe  Required line distance (5 to 8 mm) between components
