Vacuum Reservoir

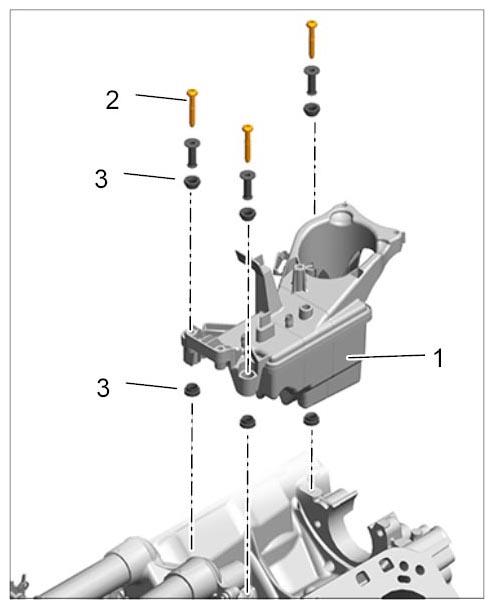

Fig 1: Identifying Vacuum Reservoir
G09805912Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Vacuum reservoir
  2. Screw with guide sleeve → Tightening torque: 10 Nm (7.5 ftlb.)
  3. Decoupling element
