Assembly Overview - Lower Part Of Intake Manifold

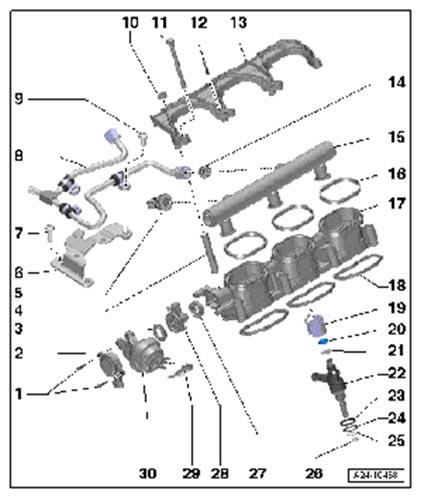

Fig 1: Exploded View Of Intake Manifold Lower Part Assembly

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Screw → Tightening torque: 2.5 Nm
2. Potentiometer for intake manifold flap
3. Sealing ring/replace if damaged
4. Sleeve
5. Fuel pressure sensor → Tightening torque: 22 Nm
6. Holder
7. Screw → Tightening torque: 9 Nm
8. High-pressure lines → Tightening torque: 27 Nm
9. Screw → Tightening torque: 9 Nm
10. Nut → Tightening torque: 9 Nm
11. Screw → Tightening torque: 9 Nm
12. Screw → Tightening torque: 2.5 Nm
13. Retaining bar for fuel distributor
14. Union → Tightening torque: 40 Nm
15. Fuel distributor
16. Seal/replace
17. Lower part of intake manifold
18. Seal/replace
19. Support ring
20. O-ring/replace, coat with engine oil before installation
21. Spacer ring/replace if damaged
22. Fuel injector
23. Top sealing washer
24. Bottom sealing washer
25. Circlip
26. Combustion chamber sealing ring/replace
27. Sealing ring/replace if damaged
28. Actuating lever for vacuum actuator
29. Vacuum hose for intake manifold flap valve
