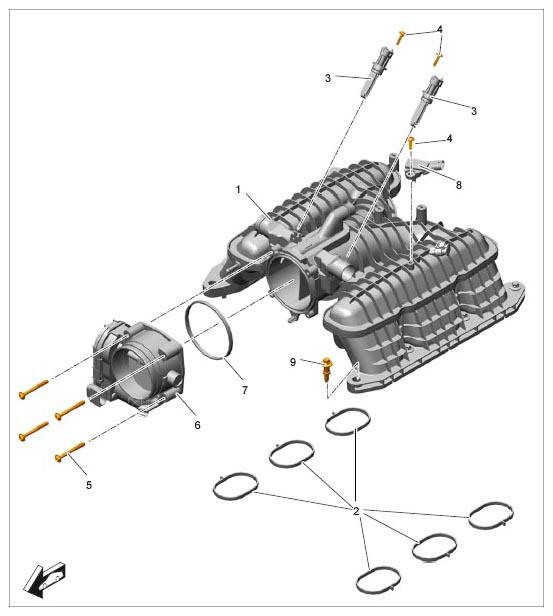

Intake-Air Distributor
- Intake-air distributor
- Seal/replace
- Heating element for positive crankcase ventilation
- Screw 5.0 x 16.0 → Tightening torque: 3 Nm (2 ftlb.) → Tightening torque: 3 Nm (2 ftlb.)
- Throttle valve screws, 6 x 55 → Tightening torque: 6.5 Nm (5 ftlb.)+1 Nm (+0.5 ftlb.)
- Throttle valve
- Seal/replace if damaged
- Sensor for intake manifold pressure (pressure and temperature sensor)
- Screw → Tightening torque: 10 Nm (7.5 ftlb.)
