Removing Throttle Housing

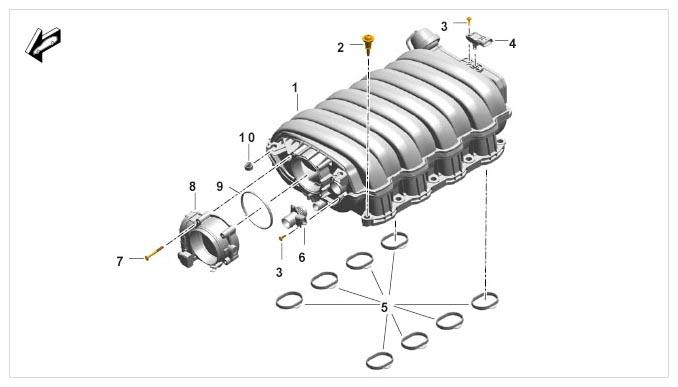

Fig 1: Identifying Intake Module On Naturally Aspirated Engine
G09805857Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Intake module
  2. Decoupling module (fastening part); observe specified tightening sequence
  3. Screw, 5 x 16
  4. Pressure sensor
  5. Intake module seal; check that seal is aligned and fitted correctly!
  6. Heat socket
  7. Screw, 6 x 50
  8. Electronic accelerator/throttle housing
  9. Seal
  10. Ball socket

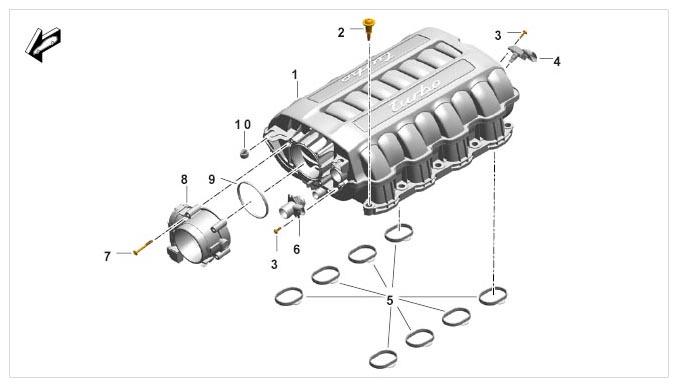

    Fig 2: Identifying Intake Air Module On Turbo Engine
    G09805858Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Intake module
  2. Decoupling module (fastening part); observe specified tightening sequence
  3. Screw, 5 x 16
  4. Pressure sensor
  5. Intake module seal; check that seal is aligned and fitted correctly!
  6. Heat socket
  7. Screw, 6 x 50
  8. Electronic accelerator/throttle housing
  9. Seal
  10. Ball socket
  1. Disconnect cable plug on the throttle housing and pull cable out of the clip.
  2. Loosen the four screws on the throttle housing -arrows-  . Remove throttle housing.

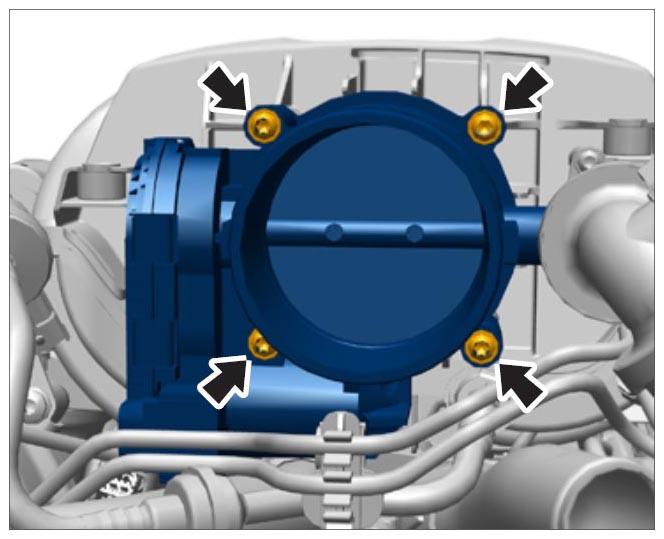

    Fig 3: Loosening Screws On Throttle Housing
    G09805859Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Check the condition of the sealing ring. Replace sealing ring if necessary → see Fig 4.

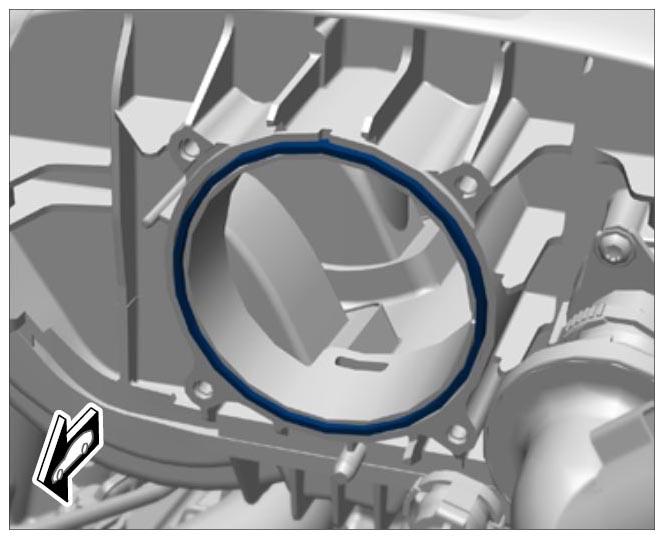

    Fig 4: Identifying Sealing Ring For Throttle Housing
    G09805860Courtesy of PORSCHE CARS NORTH AMERICA, INC.
