Removing Throttle Housing

Disconnect connector -1- on the throttle housing and pull cable out of the clip.

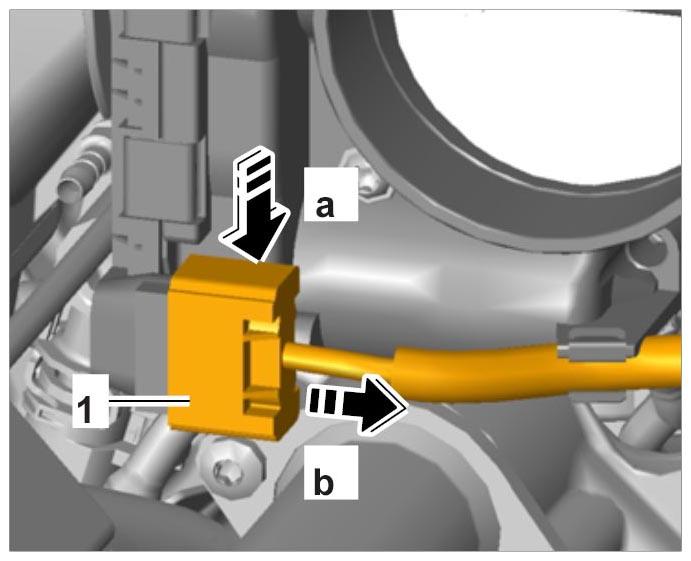

Fig 1: Disconnecting Connector On Throttle Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew and remove screws -arrows- on the throttle housing.

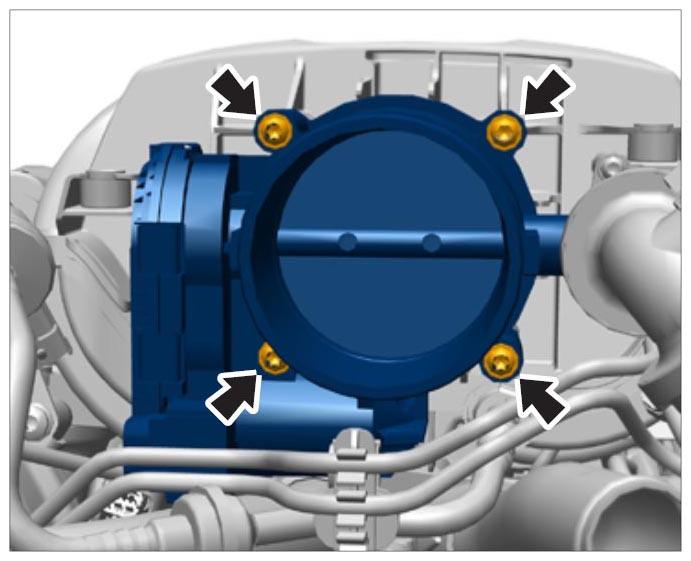

Fig 2: Locating Screws On Throttle Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove throttle housing -6- .

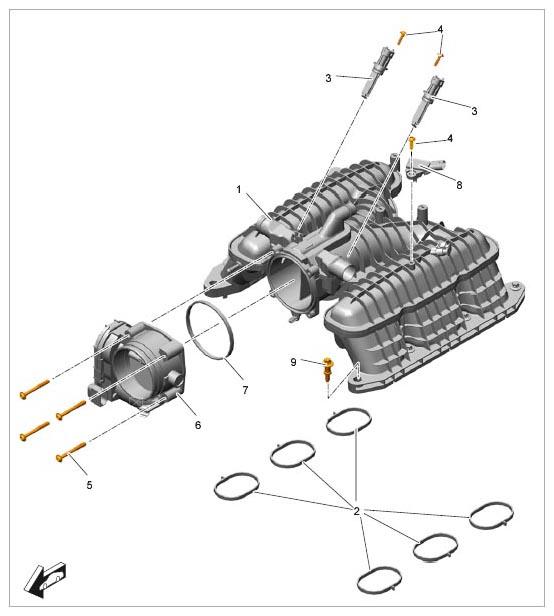

Fig 3: Identifying Intake-Air Distributor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
