Installing Throttle Housing

Check the condition of the sealing ring. Replace sealing ring if necessary. → Sealing ring for throttle housing

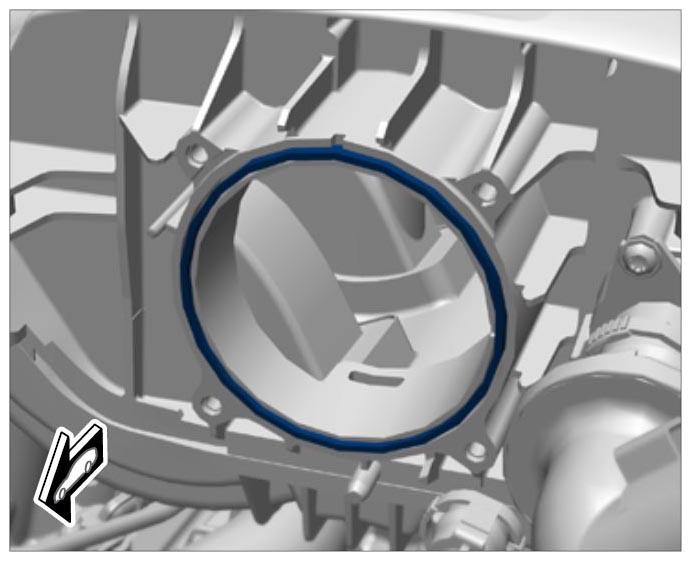

Fig 1: Identifying Sealing Ring For Throttle Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position throttle housing.
1. 2.1. Fit and tighten screws -arrows- .

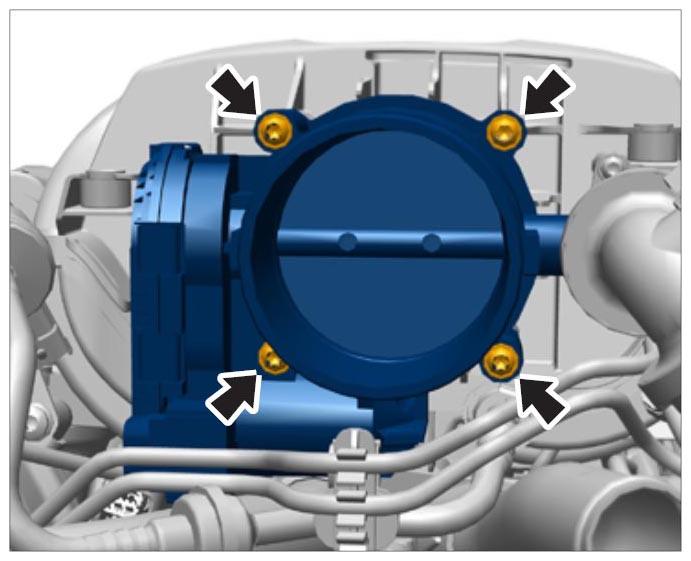

  Fig 2: Locating Screw On Throttle Housing
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit connector -1- on the throttle housing and insert cable into the clip.

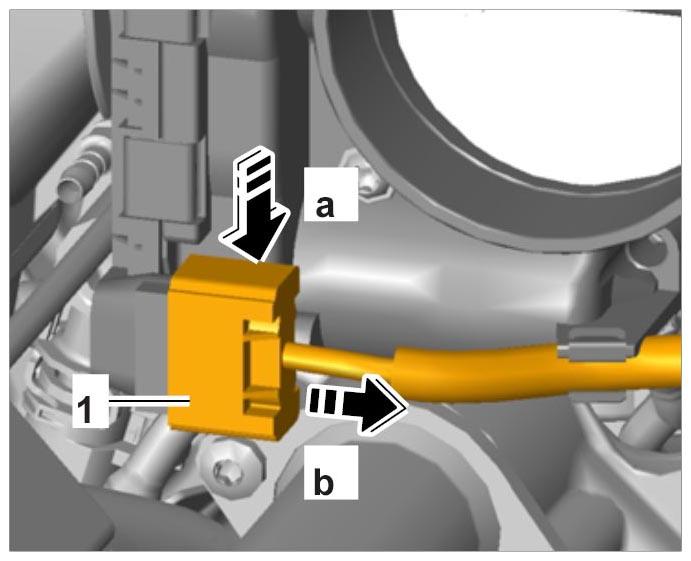

Fig 3: Fitting Connector On Throttle Housing
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
