Removing High-Pressure Fuel Injector: Notes
NOTE:
Dirt on injection system components
- Material damage
- Rough-running engine
- Bad exhaust emissions
→ Thoroughly clean connection points and adjacent areas before loosening them. If the engine is very dirty, wash it before starting disassembly work.
→ Lay removed parts on a clean surface and cover them. Do not use fibre-shedding cloths.
→ Carefully cover components or seal them if repair work will not be carried out immediately. Place rubber caps on connections. Seal intake openings with film or adhesive tape.
→ Only install clean parts. Do not take spare parts out of the packaging until just before installation.
→ Never use compressed air when the system is open. Do not move the vehicle.
- Pull out the fuel injector.

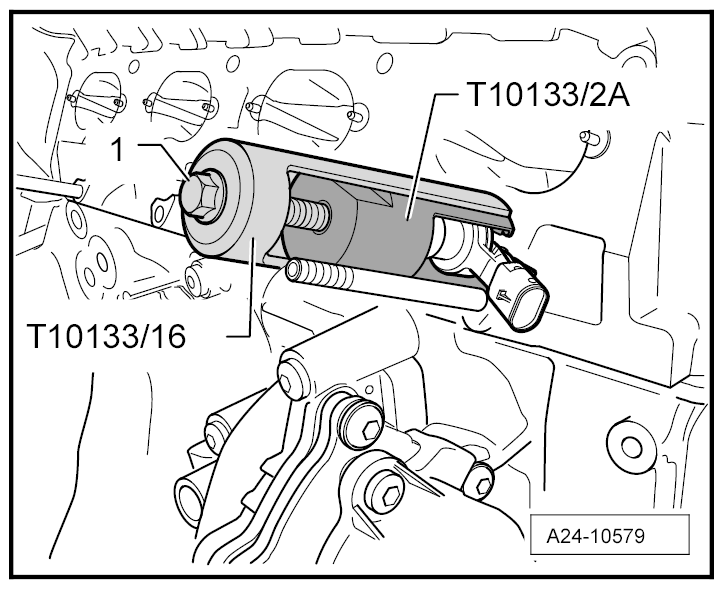

- 1.1. Guide puller -T10133/2A- from repair kit T10133 into the groove on the fuel injector.
- 1.2. Fit disassembly tool -T10133/16- from additional tool set T10133/11-15 on the puller and pull out the fuel injector by turning the screw -1- .
