Removing Front Air Guide At The Side

  1. Open the cable clip -3-  .

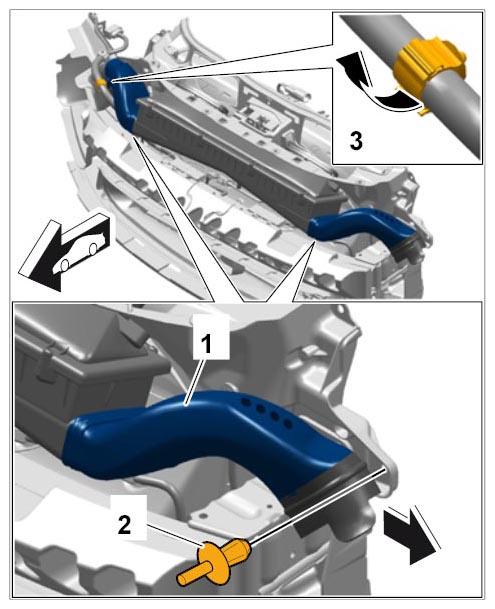

    Fig 1: Removing Front Air Guide
    G09805800Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press out the expansion rivets -2-  .
  3. Remove air guide at the side -1-  .
