Removing Air Box For Throttle Housing

→ Thoroughly clean connection points and adjacent areas before loosening them. If the engine is very dirty, wash it before starting disassembly work.

→ Lay removed parts on a clean surface and cover them. Do not use fibre-shedding cloths.

→ Carefully cover components or seal them if repair work will not be carried out immediately. Place rubber caps on connections. Seal intake openings with film or adhesive tape.

→ Only install clean parts. Do not take spare parts out of the packaging until just before installation.

→ Never use compressed air when the system is open. Do not move the vehicle.

1. Remove engine cover -1-  . → 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)
   Fig 1: Identifying Engine Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove air guide pipe.
   1. 2.1. Unclip hose from the holder -1-  .
   2. 2.2. Loosen hose clamps -2-  .
   3. 2.3. Pull air guide pipe off the holder -3-  .

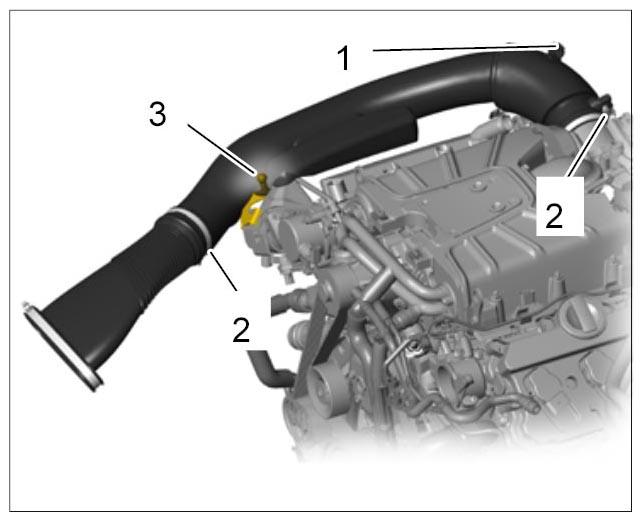

      Fig 2: Identifying Air Guide Pipe

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
