Subsequent Work

  1. Install throttle valve cover.
    1. 1.1. Fit throttle valve cover.
    2. 1.2. Connect the vacuum hose -3-  at the throttle valve cover and clip in tank vent line -4-  and XY line -5-  .
    3. 1.3. Fit throttle valve cover and tighten screw-type clamp -2-  .
    4. 1.4. Fit cover at the connection for the air cleaner and tighten screw-type clamp -1-  .

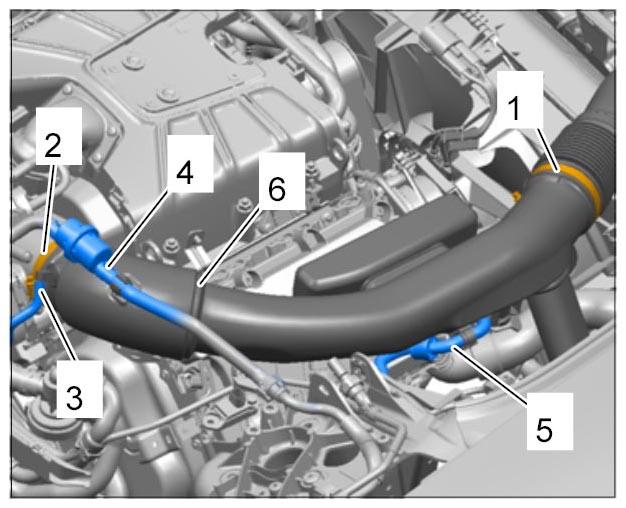

      Fig 1: Identifying Throttle Valve Cover
      G09805688Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install engine cover. → 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)
  3. Connect the battery. → 270619 REMOVING AND INSTALLING BATTERY
