Assembly Overview - High-Pressure Pump

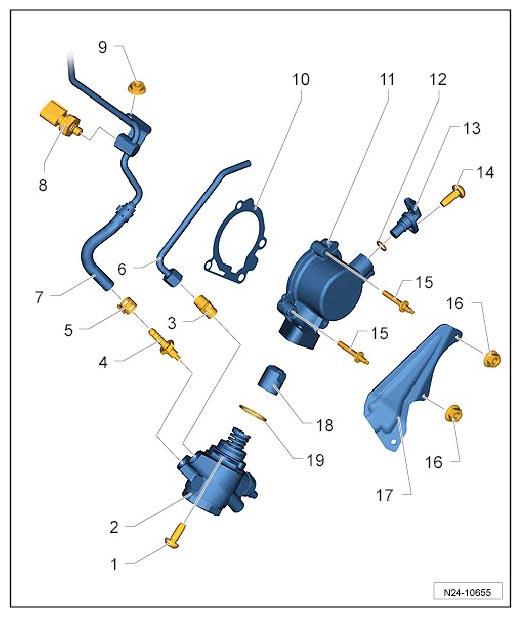

Fig 1: Exploded View Of High-Pressure Pump Assembly
G09805684Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  2. High-pressure pump with fuel metering valve/do not disassemble
  3. Adapter → Tightening torque: 27 Nm (20 ftlb.)
  4. Adapter → Tightening torque: 27 Nm (20 ftlb.)
  5. Hose clamp
  6. Fuel high-pressure line → Tightening torque: 25 Nm (19 ftlb.)
  7. Fuel supply line
  8. Fuel pressure sensor for low pressure → Tightening torque: 15 Nm (11 ftlb.)
  9. Nut → Tightening torque: 9 Nm (6.5 ftlb.)
  10. Seal/replace
  11. Housing
  12. O-ring/replace
  13. Hall sender
  14. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  15. Screw → Tightening torque: 9 Nm (6.5 ftlb.)
  16. Nut → Tightening torque: 9 Nm (6.5 ftlb.)
  17. Protective plate
  18. Roller tappet/coat with engine oil before installation
  19. O-ring/replace, coat with engine oil before installation
