High-Pressure Pump And Low-Pressure Lines

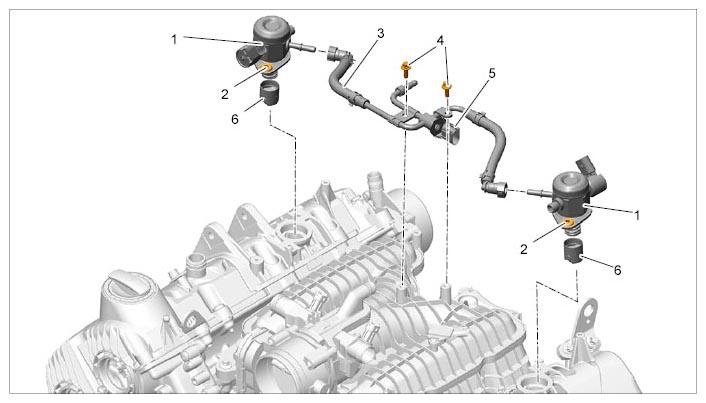

Fig 1: Identifying High-Pressure Pump And Low-Pressure Lines
G09805698Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. High-pressure pump
  2. Screw, M6 x 20 → Tightening torque: 10 Nm (7.5 ftlb.)
  3. Low-pressure fuel line

    - Check locking mechanism on the quick-connecting locks by trying to pull them off!

  4. Screw, M6 x 16 → Tightening torque: 10 Nm (7.5 ftlb.)
  5. Fuel pressure sensor (low-pressure sensor) → Tightening torque: 20 Nm (15 ftlb.)
  6. Roller tappet
