Component Overview

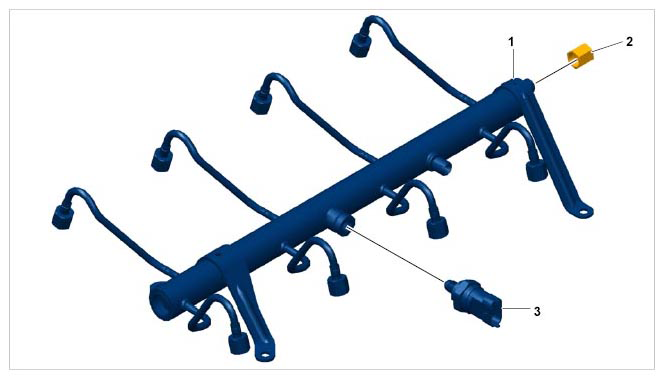

Fig 1: Identifying Fuel Distributor Pipe
G09805689Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fuel distributor pipe (fuel gallery, rail)
  2. Stopper
  3. Fuel pressure sensor

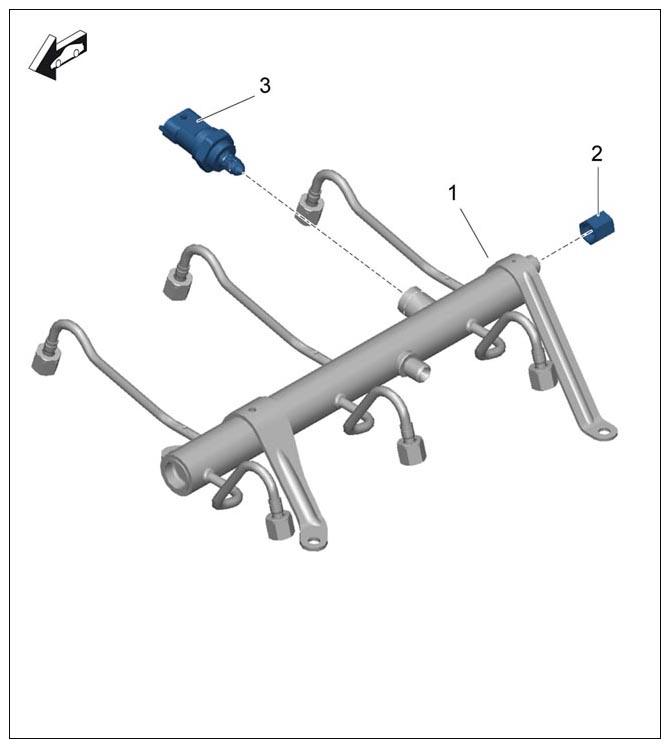

Fig 2: Identifying Stopper, Fuel Distributor Pipe And Sensor
G09805690Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fuel distributor pipe (fuel gallery)
  2. Stopper
  3. Fuel pressure sensor
