Removing Accelerator Pedal: Removing

  1. Loosen accelerator pedal.

    Unscrew screw -4-  .

  2. Remove accelerator pedal -1-  .

    Pull accelerator pedal forward slightly and remove it in an upward direction.

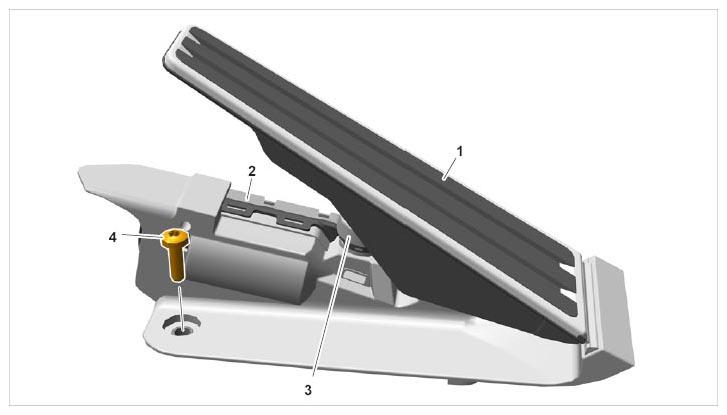

    Fig 1: Overview Of Accelerator Pedal Module
    G09805545Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Disconnect electric connector from the accelerator pedal.

    Press locking mechanism (see -arrow-  ) down as far as the locking point and disconnect electric connector -2-  .

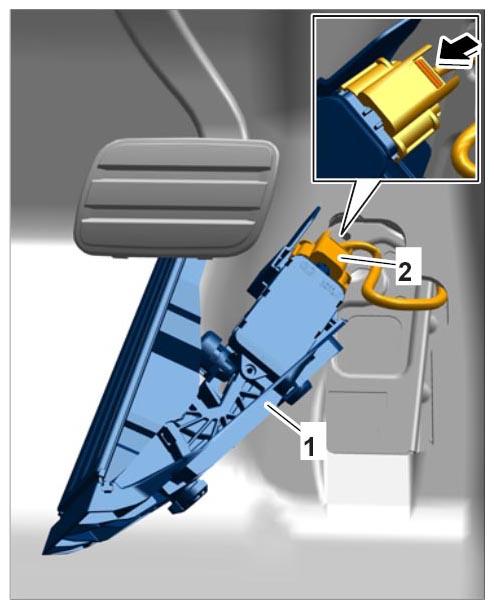

    Fig 2: Disconnecting Electric Connector From Accelerator Pedal
    G09805546Courtesy of PORSCHE CARS NORTH AMERICA, INC.
