Installing Accelerator Pedal: Installing

  1. Connect accelerator pedal.

    Push electric connector -2-  back onto the accelerator pedal as far as the locking point until the locking mechanism -1-  releases and locks the connector -2-  again.

  2. Insert and secure the accelerator pedal. Observe the specified tightening torque!

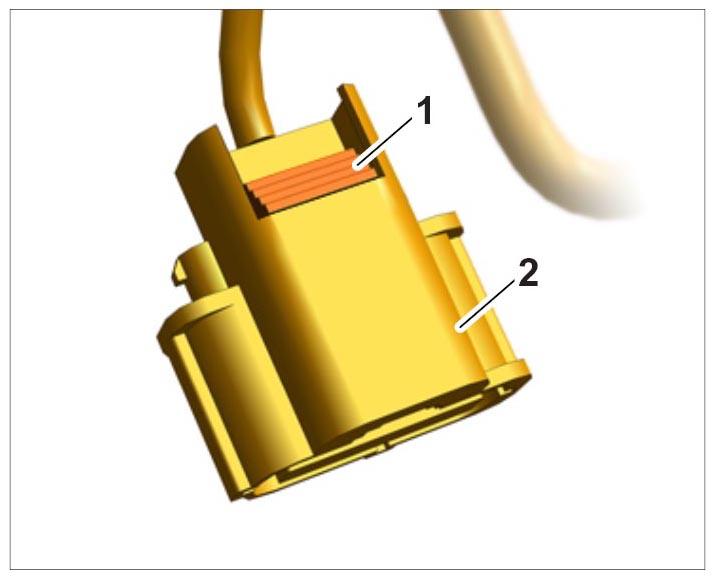

    3. Fig 1: Identifying Electric Connector For Accelerator Pedal
    G09805547Courtesy of PORSCHE CARS NORTH AMERICA, INC.
