Subsequent Work

  1. Fit right cover in the bodyshell opening.
    1. 1.1. Press on cover under the rear seat. Observe arrow marking between cover and bodyshell.
    2. 1.2. Fit right rear seat. → INSTALLING REAR SEAT

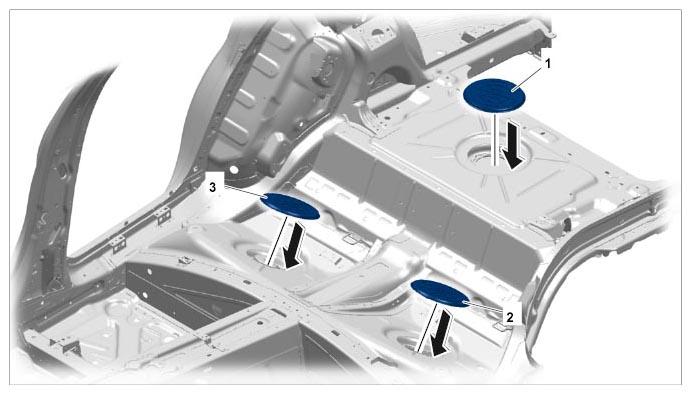

    Fig 1: Pressing Cover Under Rear Seat
    G09805537Courtesy of PORSCHE CARS NORTH AMERICA, INC.
