Test Tool Setup

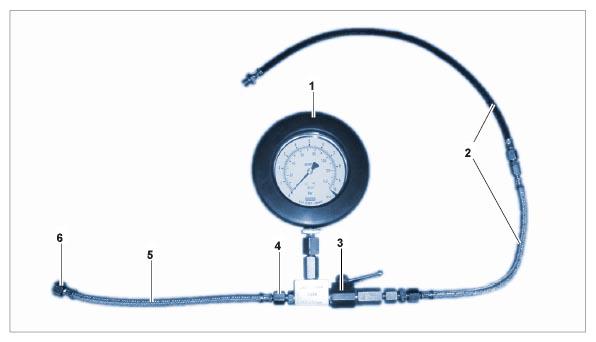

  1. Test equipment - pressure gauge (without stopcock) K-Jetronic pressure tester V.A.G. 1318 WE 1291
  2. Connecting line connecting line 9705/3  (both lines) => Connection to
  3. Adapter 1318/15
  4. Adapter 1318/23
  5. Connecting line connecting lines P378c
  6. Adapter 1318/12 => Connection to line on engine side

    -

    Fig 1: Identifying Pressure Test Tool
    G09805514Courtesy of PORSCHE CARS NORTH AMERICA, INC.

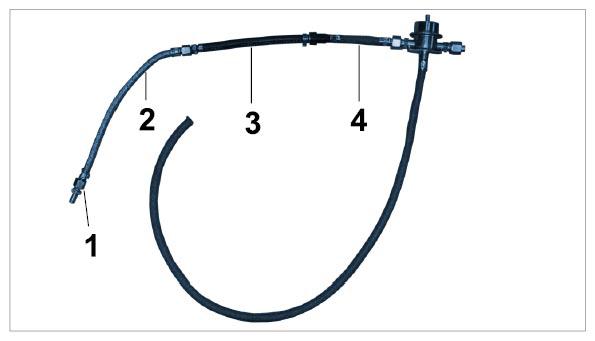

  1. Adapter 1318/12
  2. Connecting line connecting lines P378c
  3. Connecting line 1318/17
  4. Pressure reducer measuring adapter 9705
    5. Fig 2: Checking Delivery Rate
    G09805515Courtesy of PORSCHE CARS NORTH AMERICA, INC.
