Subsequent Work

  1. 1. Fit all covers -1, 2 and 3-  in the bodyshell opening.

    Be careful of the lug on the bodyshell cover and the cut-out on the body panel when doing this.

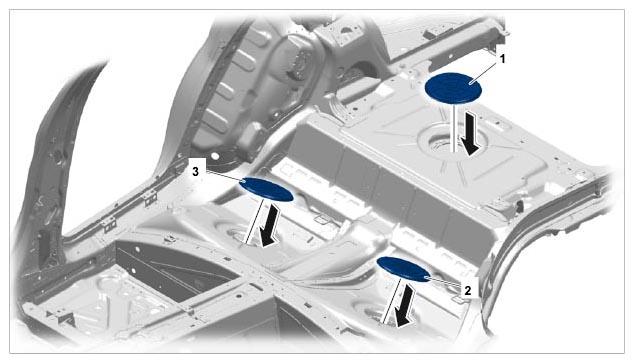

    Fig 1: Locating Covers And Bodyshell
    G09805470Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. 3. Install rear seat → INSTALLING REAR SEAT
  3. 4. Fit luggage compartment cover. → INSTALLING CENTRE TRIM PANEL FOR LUGGAGE COMPARTMENT (LUGGAGE COMPARTMENT COVER)
  4. 5. Fill in fuel. → Filling Fuel (Filling The Fuel Tank)
