Removing Fuel-Level Sensor

Remove fuel level sender on the ventilation flange

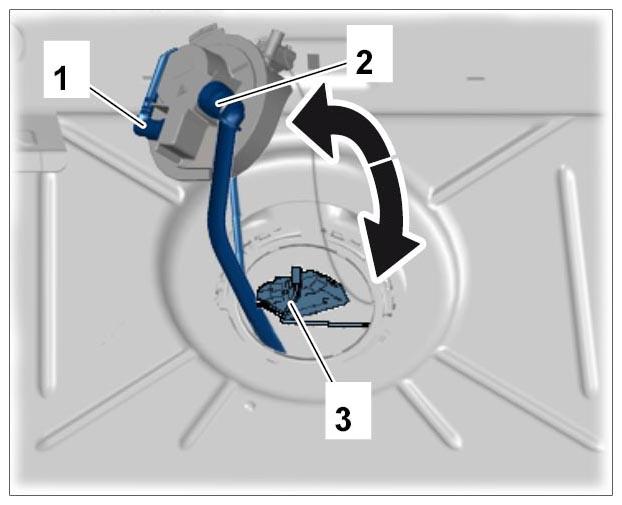

1. 1.1. Carefully lift up the tank ventilation flange, disconnect connectors -1 and 2- and remove the flange → Tank ventilation flange . When doing so, make sure not to damage the fuel-level sensor -3- .

  Fig 1: Removing Tank Ventilation Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

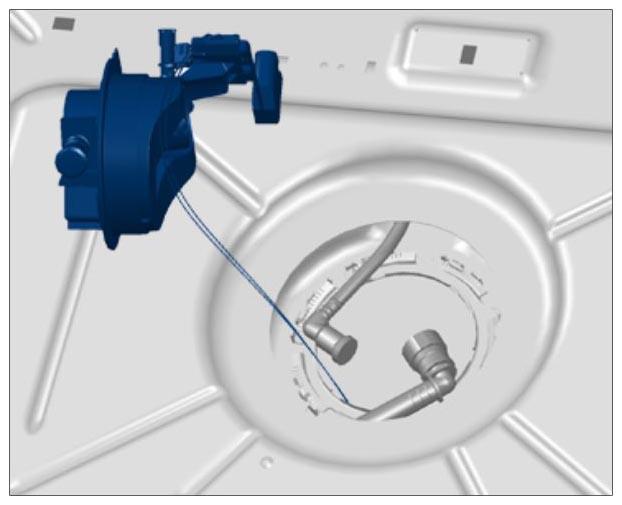

2. 1.2. Place the tank ventilation flange above the bodyshell opening → Positioned flange . The cable and fuel-level sensor remain fitted.

  Fig 2: Positioning Tank Ventilation Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

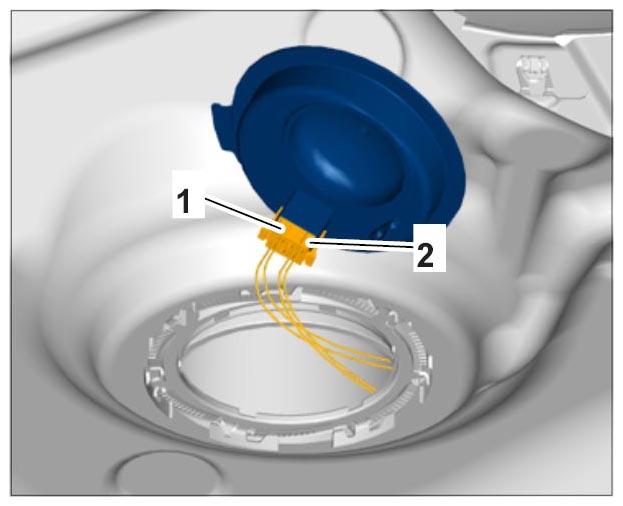

3. 1.3. Lift up the left flange in direction of travel and disconnect cable -2- for the ventilation flange.

  Fig 3: Identifying Plug Connection For Left Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. 1.4. Pull cable for ventilation flange through and remove ventilation flange with fuel level sender.
Remove fuel level sender on the left flange

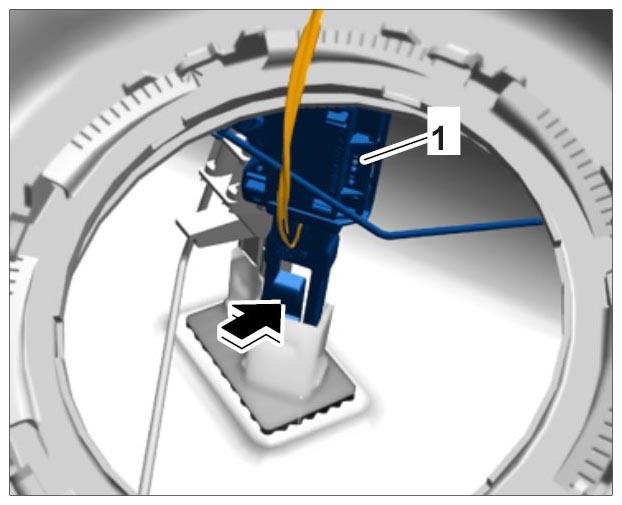

1. 2.1. Unclip fuel level sender -1- (-arrow- ) and pull it out of the mounting.

  Fig 4: Locating Fuel Level Sender On Left Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fuel level sender on the right flange
1. 3.1. Unclip fuel level sender -1- and pull it out of the mounting.

  Fig 5: Sucking Jet Pump Holder And Fuel Level Sender
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

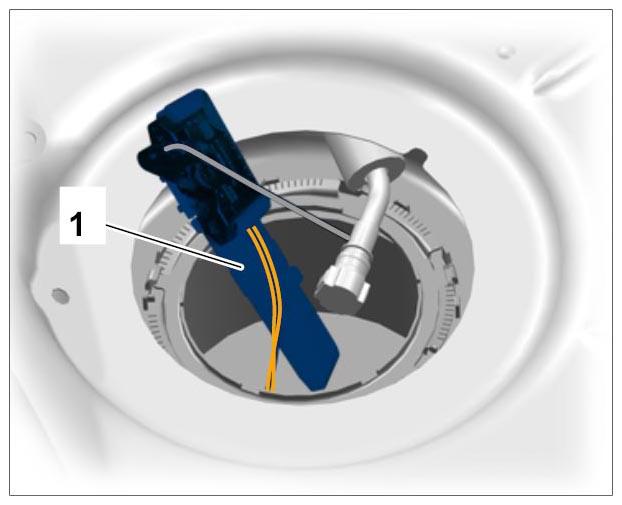

2. 3.2. Remove fuel level sender -1- and disconnect cable.

  Fig 6: Identifying Fuel Level Sender On Right Flange
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
