Installing Boost Pressure Sensor

  1. If the sealing ring is damaged, the boost pressure sensor must be replaced.
  2. Install boost pressure sensor.
    1. 2.1. Insert boost pressure sensor -1-  into the Y-shaped pipe by turning it slightly and screw in and tighten screw -2-  .
    2. 2.2. Plug in and lock electric plug connection for the boost pressure sensor -1-  .

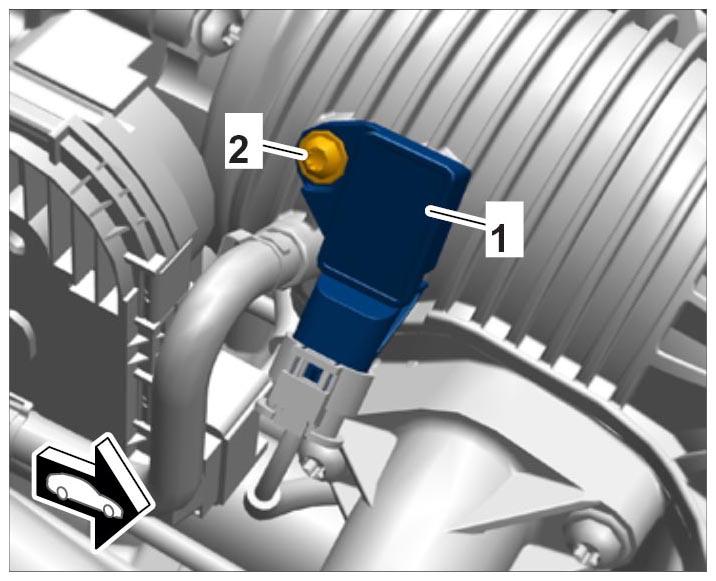

      Fig 1: Identifying Boost Pressure Sensor
      G09805681Courtesy of PORSCHE CARS NORTH AMERICA, INC.
