Removing Right Combination Valve For Secondary Air

  1. Unscrew screws -arrows-  and remove the heat shield -1-  .

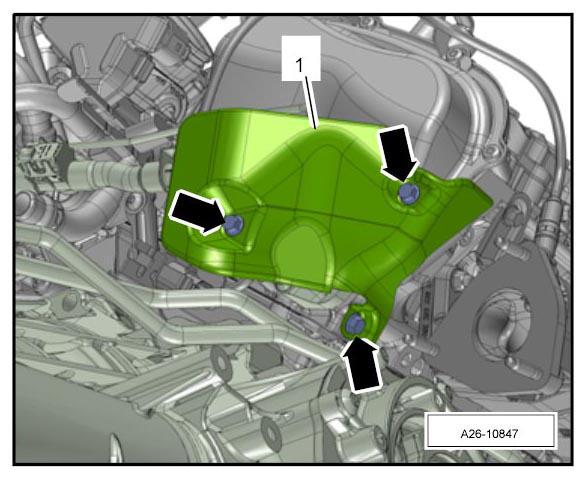

    Fig 1: Locating Heat Shield On Right Combination Valve And Screw
    G09806089Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove combination valve:
    1. 2.1. Pull vacuum line -2-  off the combination valve for secondary air.
    2. 2.2. Unscrew screws -3-  , pull off combination valve and unscrew screws -1-  for secondary air pipe.

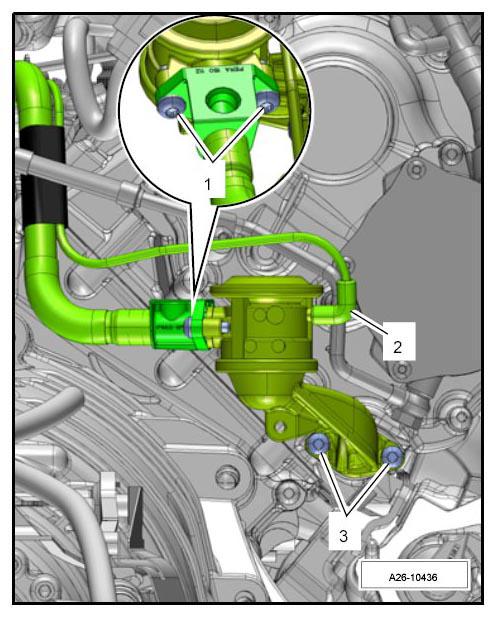

      Fig 2: Identifying Right Combination Valve
      G09806090Courtesy of PORSCHE CARS NORTH AMERICA, INC.
