Removing Secondary-Air Pump

  1. Remove secondary-air pump.
    1. 1.1. Release and disconnect electric connector -1-  and unclip it from the holder
    2. 1.2. Loosen hose clamp -2-  and pull off secondary air hose -3-  .
    3. 1.3. Unscrew fastening screws -4-  . Remove secondary-air pump -5-  .

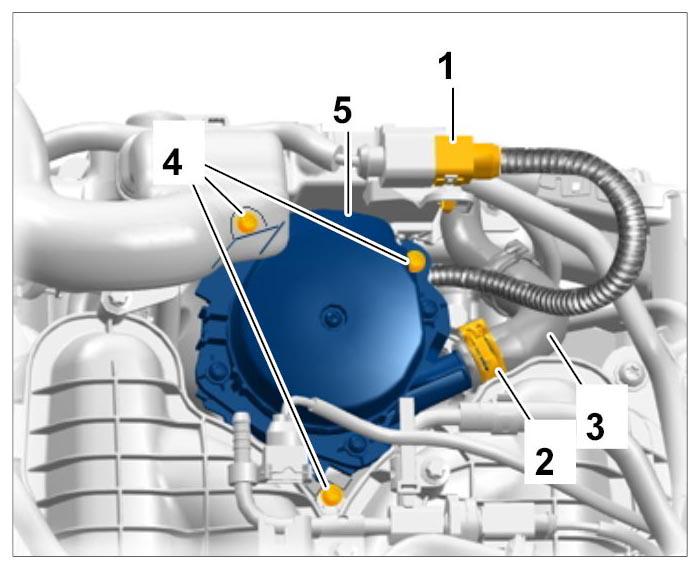

      Fig 1: Identifying Secondary-Air Pump, Hose And Screw
      G09806073Courtesy of PORSCHE CARS NORTH AMERICA, INC.
