Removing Control Box For Exhaust Flap

CAUTION: Hot components
  • Risk of burns

→ Let hot components cool down.

→ Wear personal protective gear.

  1. Pull off the vacuum hose -3-  .
  2. Remove cotter pin -1-  .
  3. Remove two hexagon nuts -2-  .
  4. Pull push rod off the exhaust flap pin and remove the control box -4-  .

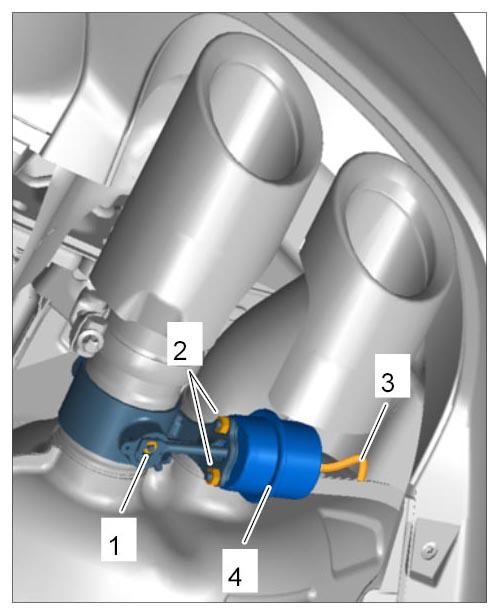

    Fig 1: Identifying Control Box For Exhaust Flap
    G09806070Courtesy of PORSCHE CARS NORTH AMERICA, INC.
