Overview Of Exhaust System Cuts

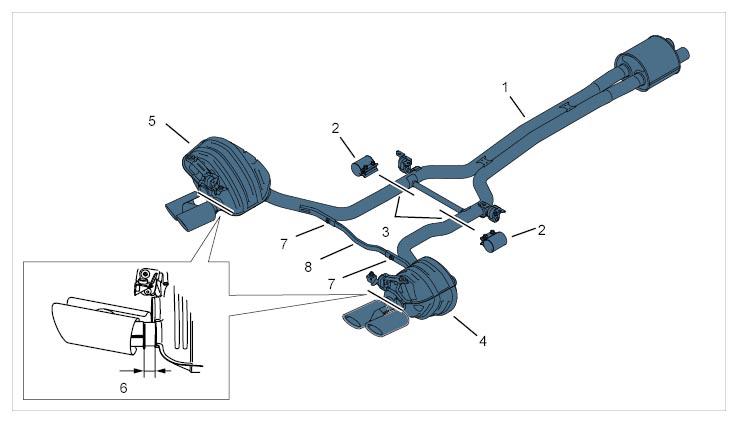

Standard exhaust system
Clamping sleeves for replacing rear silencer
Connection point for rear silencer (impression on exhaust pipe)
Right rear silencer
Left rear silencer
26 mm of exhaust pipe length remaining after cut
Screw and square net
Transverse strut

Fig 1: Identifying Standard Cutting Guide

G09806045

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

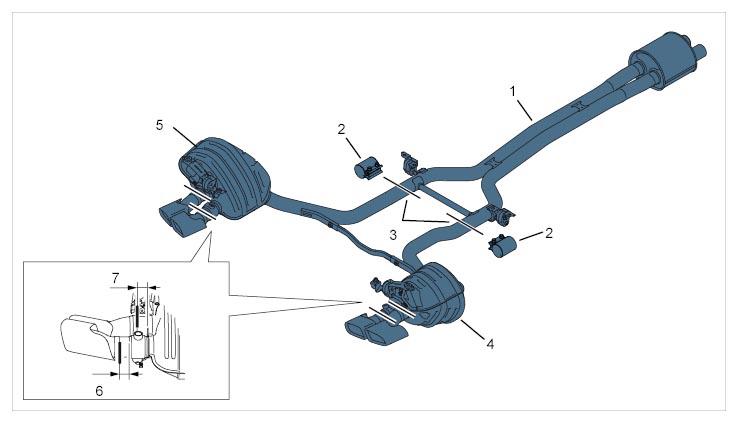

Turbo exhaust system
Clamping sleeves for replacing rear silencer
Connection point for rear silencer (impression on exhaust pipe)
Right rear silencer
Left rear silencer
26 mm of exhaust pipe length remaining after cut
26 mm of exhaust pipe length remaining after cut

Fig 2: Identifying Turbo Cutting Guide

G09806046

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

V6 exhaust system
Clamping sleeves for replacing rear silencer
Connection point for rear silencer (impression on exhaust pipe)
Right rear silencer
Left rear silencer
26 mm of exhaust pipe length remaining after cut

Fig 3: Identifying Turbo Cutting Guide

G09806046

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
