Installing Exhaust System

Always check the installation dimensions (danger of noise, component collisions)!

1. Push new exhaust clamps (clamping sleeves) onto the exhaust pipes. The threaded joint must be pointing downwards.

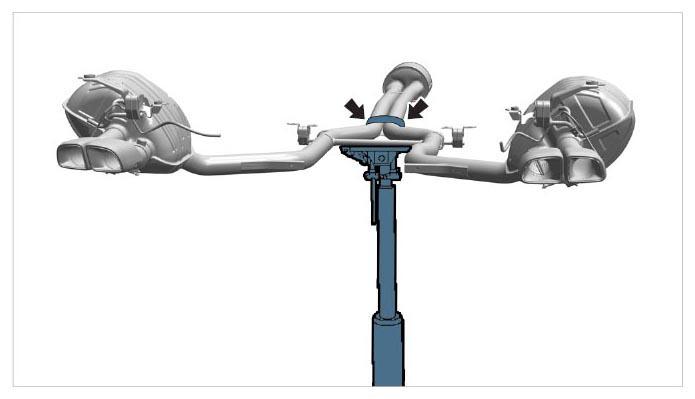

2. If you have not already done so, position the exhaust system on a transmission jack and secure it using a tension strap. -arrows-
   Fig 1: Locating Exhaust Clamps

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Position the exhaust system under the vehicle using a transmission jack. Do not install too tightly.
   1. 3.1. When installing the exhaust system, carefully push rear silencers together and guide them into the rear apron. Carefully raise the transmission jack while doing so. Get a second mechanic to help if necessary.
4. Screw in and tighten fastening screws on holders -2 and 4-  . Tightening torque 23 Nm (17 ftlb.)

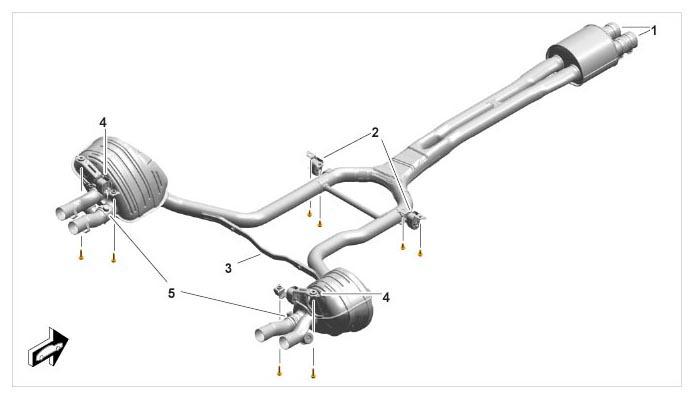

   1. Clamping sleeves
   2. Centre holder
   3. Connecting strut between rear silencers
   4. Rear holder
   5. Flap system vacuum unit
   Fig 2: Identifying Exhaust System Components (Tailpipe Covers Not Shown)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

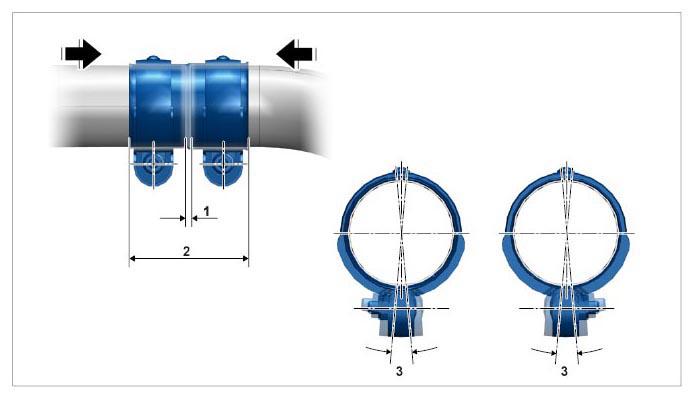

5. The threaded joint on the exhaust clamps must be pointing downwards. Adjust to maximum inclination -3-  and ensure the assembly length is the same on both exhaust pipes. Adjustment value 10° (7.5 ftlb.) Tightening torque 23 Nm (17 ftlb.)
   1. Gap of 0 - 5 mm between the exhaust pipe and catalytic converter outlet
   2. Length of exhaust clamp
   3. Maximum inclination
   Fig 3: Identifying Installation Position Of Exhaust Clamp
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Connect the vacuum hoses at the vacuum units for flap activation.

   Information

   Refer to the relevant repair instructions for tightening torques regarding parts belonging to the relevant body, transmission, chassis, electrical component groups.

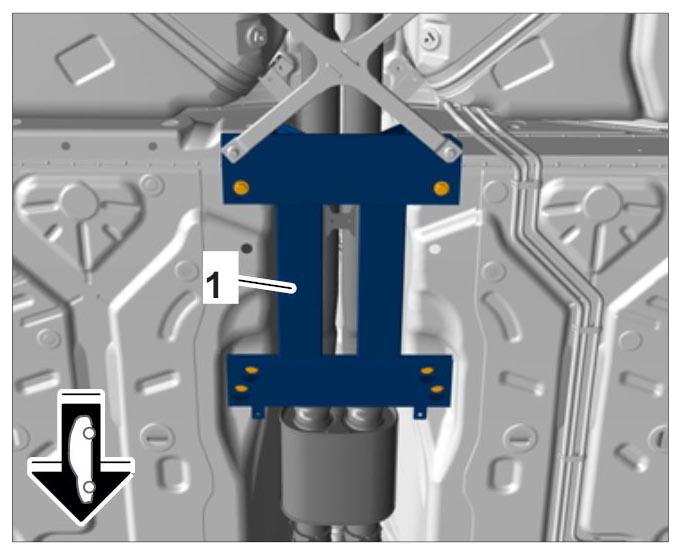

7. Fit reinforcement plate -1-  on cardan tunnel.
   Fig 4: Removing Reinforcement

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

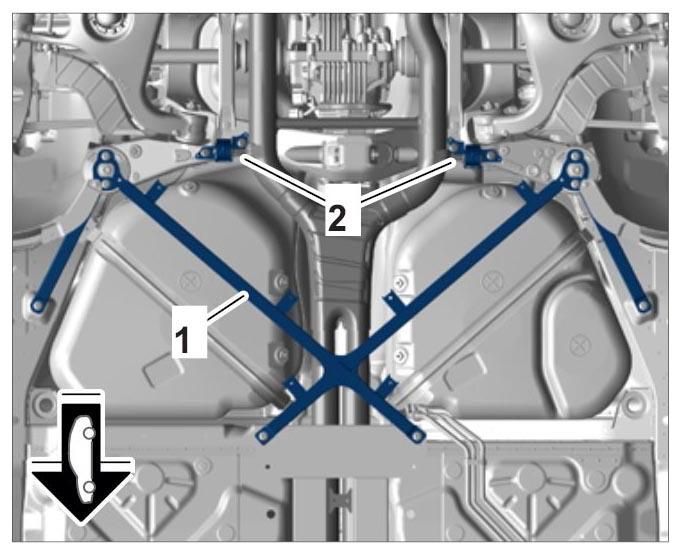

8. Fit struts -1-  on the underbody.
   Fig 5: Removing Struts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Fit connecting strut between the rear silencers. Tightening torque 23 Nm (17 ftlb.)
