Installation Dimensions Of Exhaust System
Information
- The exhaust system can expand up to 30 mm to the rear during operation.
- If heat causes the exhaust system to expand during operation, it may touch against the luggage-compartment pan, rear axle or heat protection panels if it is not installed correctly and cause noise (tapping, rumbling, droning).
- During installation, the exhaust system must be positioned when cool with sufficient distance from neighboring components.
- When installing the exhaust system when cool, it is best to push the exhaust system towards the catalytic converters before fastening the clamping sleeves.

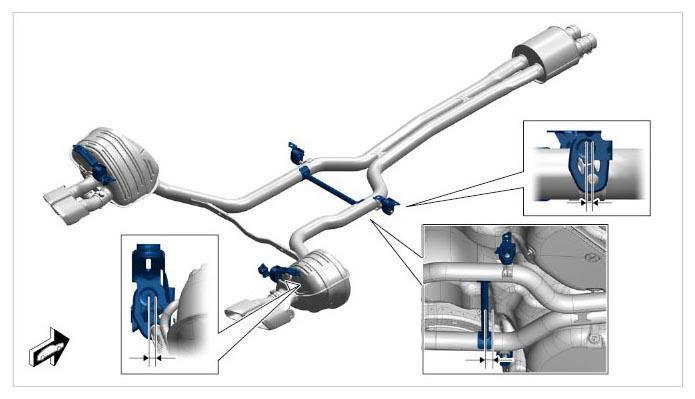

- Secure all 8 screws in the rubber mounting, push the exhaust system towards the catalytic converters, set the dimensions as shown in the illustration, screw on the clamping sleeves.
- Set a tilt of approx. 7 mm at the rubber mounting (exhaust system can expand towards the rear).
- Set a distance of approx. 8 mm from the center of the crash support (pipe) to the rear axle housing.
- Set a tilt of approx. 10 mm at the rubber mounting (exhaust system can expand towards the rear).
