Removing Front Cigarette Lighter

  1. Remove ashtray insert.

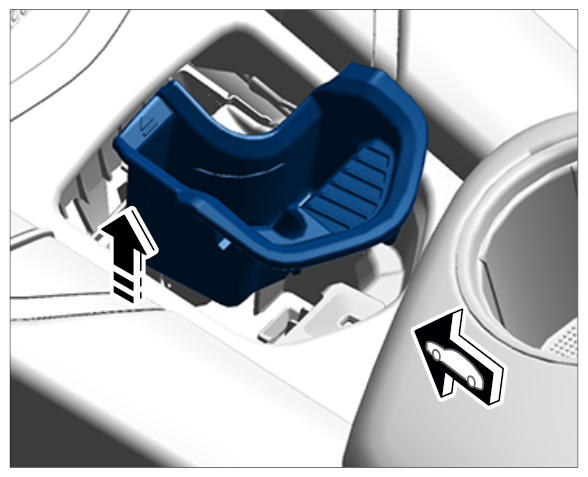

    Fig 1: Removing Ashtray Insert
    G09813718Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disengage the cigarette lighter -1-  from the two catches using a screwdriver.

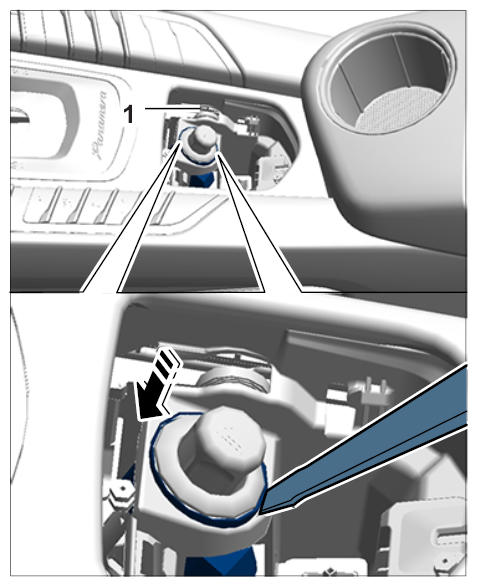

    Fig 2: Disengaging Cigarette Lighter
    G09813719Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Press on the cigarette lighter to remove it from the holder.

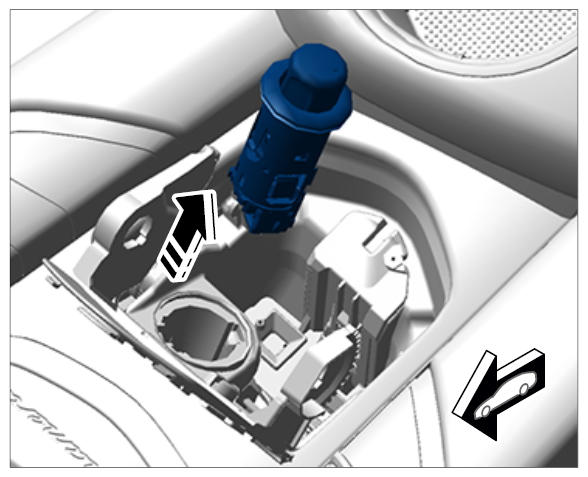

    Fig 3: Removing Cigarette Lighter
    G09813720Courtesy of PORSCHE CARS NORTH AMERICA, INC.
