Removing Plug Socket In Rear Centre Console

  1. Unplug connector on the plug socket.
    Fig 1: Disconnecting Connector
    G09813705Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Open the cover -2-  of the plug socket and press out the plug socket -1-  using a screwdriver.

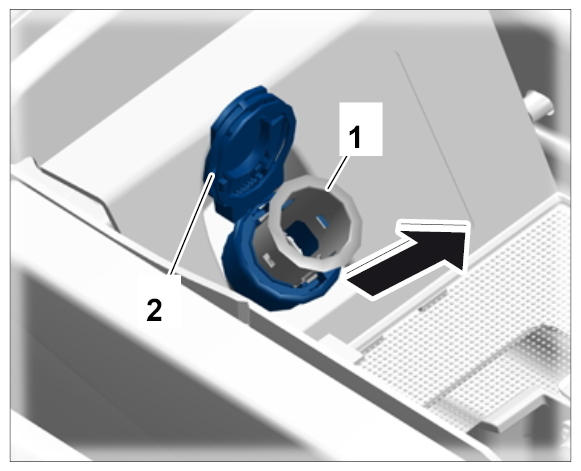

    Fig 2: Removing Plug Socket In Centre Console
    G09813706Courtesy of PORSCHE CARS NORTH AMERICA, INC.
