Installing Plug Socket In Rear Centre Console

  1. Open the cover -2-  of the plug socket and push in plug socket -1-  .

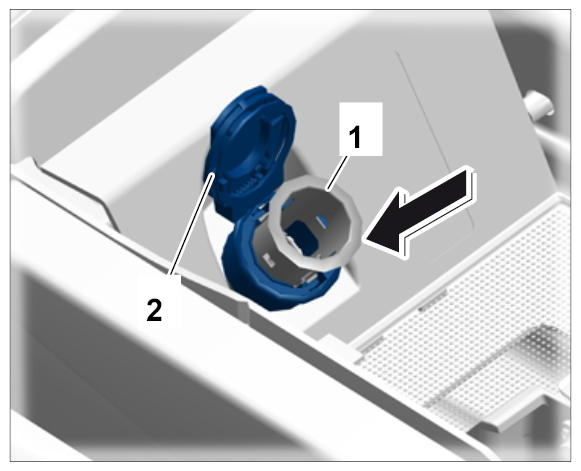

    Fig 1: Installing Plug Socket In Centre Console
    G09813712Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Plug in connector. Check that it is seated securely.

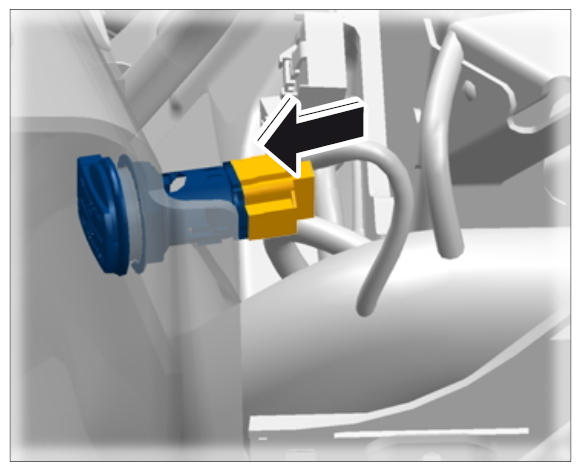

    Fig 2: Installing Plug Connector
    G09813713Courtesy of PORSCHE CARS NORTH AMERICA, INC.
