Installing Gateway Control Unit

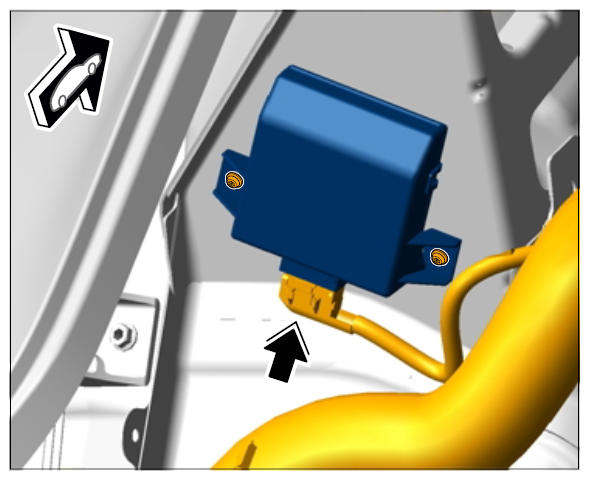

- Connect electric plug connection until it engages securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

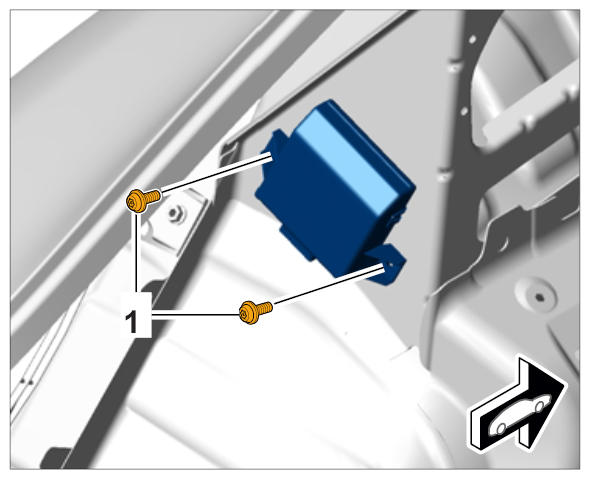

- Position the control unit and secure with the two fastening nuts -1-
.→ Tightening torque: 2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

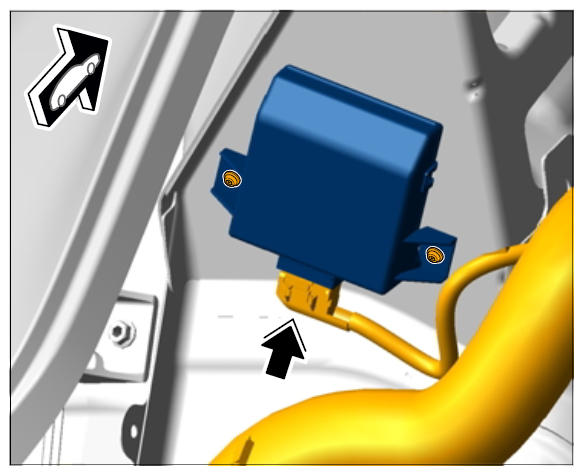

- Connect the electrical plug, pressing on until it clicks into place.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Position the control unit and secure with the two fastening nuts -1-
.→ Tightening torque: 2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
